Modifying Color Palettes

Any of the included or checked color palettes can be modified.

NOTE:

•  For the selected default color palette, only the Number of Colors and assigned colors can be modified.
• Color palettes that are not selected cannot be modified.

1. Click the Edit   icon of an included or checked color palette.

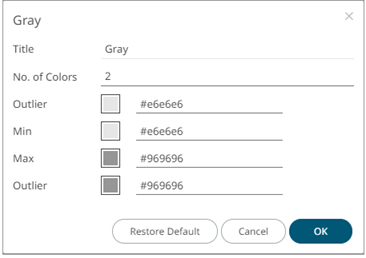

   The corresponding dialog box displays.



2. Modify the Title, Number of Colors, and assigned colors.
3. Click   to commit the changes or   to revert to the original settings.
