Creating a New Shape Palette in the Workbook

1. Click Add Palette  .

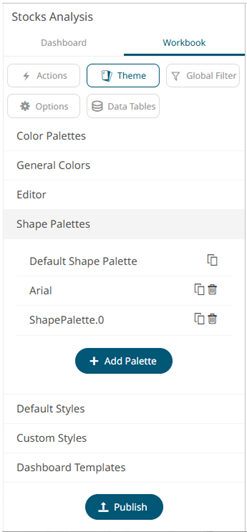

   A new shape palette displays (i.e., ShapePalette.0).

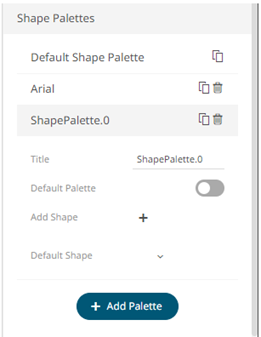

2. Click ShapePalette.<Number>.

   The section expands to allow its definition.



3. Enter the shape palette Title and click  .
4. To make this shape palette the default for the workbook theme, tap the Default Palette slider to turn it on.

   NOTE: The default shape palette can not be deleted.

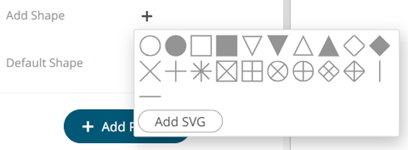

5. To add the shapes, click  .



   You can either:

   • Click on a shape.
   • Click . Select one or more SVG files in the Open dialog box that displays.

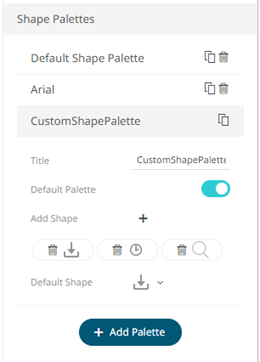

   The added shapes are displayed.



   To delete a shape, click it’s corresponding Delete  icon.

6. Select the Default Shape in the drop-down list.
7. Click the Save   icon on the toolbar to save the changes.

   The new shape palette is available on the Shape Palette drop-down list in the Shape variable when the workbook theme, where it is added, is used (i.e., Light).
