Creating a New Shape Palette

1. Click Add Palette .

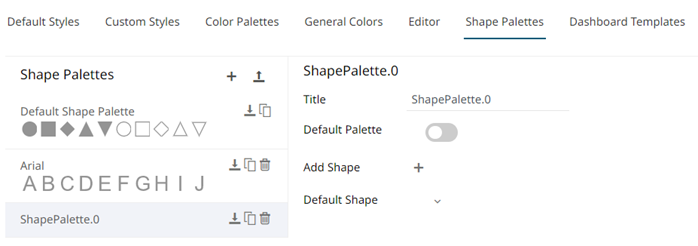

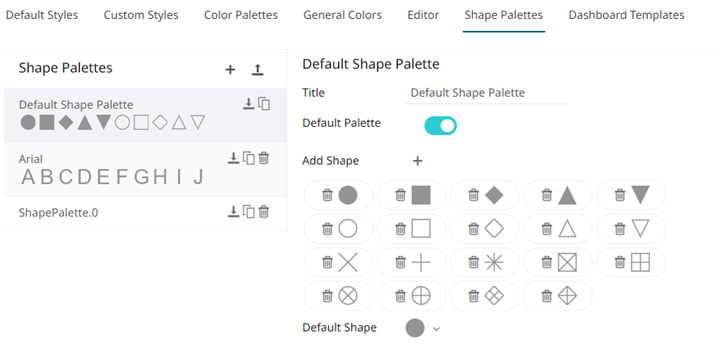

   A new shape palette displays (i.e., ShapePalette.0).



2. Click ShapePalette.<Number>.

   The page changes to allow the definition of the new shape palette.



3. Enter the shape palette's Title and click  .
4. To make this shape palette the default for the workbook theme, tap the Default Palette slider to turn it on.

   NOTE: The default shape palette can not be deleted.

5. To add the shapes, click  .



   You can either:

   • Click on a shape
   • Click . Select one or more SVG files in the Open dialog box that displays.

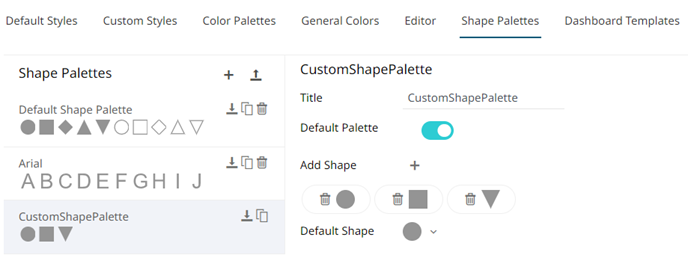

   The added shapes are displayed.



   To delete a shape, click its corresponding Delete  icon.

6.  Select the Default Shape in the drop-down list.
7.  Click Save .
