Connector for MongoDB

The MongoDB connector is an interface used to import MongoDB’s schema-less BSON documents into a table schema that Panopticon can interpret and analyze. It uses many BSON structure types and MongoDB query features.



  1. Enter the following information:
    Property Description

    URL

    Enter either:

    • localhost if the database resides on the same computer, or

    • The IP address and port of the computer where MongoDB is installed (e.g., 192.168.1.1:27017). If no port is specified, the default is 27017.

    User Id

    The user Id if authorization is enabled for MongoDB.

    Password

    The password if authorization is enabled for MongoDB.

    Authentication DB

    The database where the user is created (default is admin).

    Database

    The database that will be used.

    Collection

    The collection that will be used.

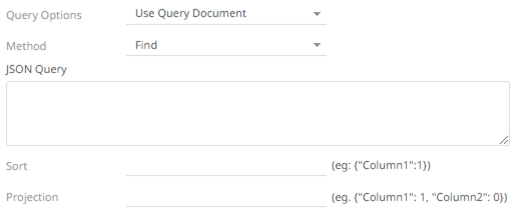

  2.  To make the Query Document feature of MongoDB available in Panopticon, select Use Query Document.

    The Connector Settings pane updates to display the settings of this query option.

    For the Method option, select any of the following values:

    • Find (Default)

      Allows you to fetch a document from a MongoDB collection.

      Two more configurable settings are available:

      • Sort

        Provide a JSON object that defines the sort criteria, then set the order to either 1 for ascending or -1 for descending (e.g., {"address.building":1}).

      •  Projection

        Provide a JSON object to include or exclude from the result of the Find query.

        For example, if a document has 9 documents and you only need to display 5, you can either:

        • select 5 JSON objects, then set the limit value to 1 to display

          {"cuisine":1, "grades":1, "restaurant_id":1, "name":1, "borough":1}

        • select 4 JSON objects then set the limit value to 0 to hide

          {"address.zipcode":0, "address.coord":0, "address.street":0, "address.building":0}

      NOTE: _id field is always displayed while executing the Find method. You can opt to set this field to 0 to hide it (e.g., {"_id":0}).

    • Aggregate

      Allows you to specify aggregation pipeline using multiple stages.

      Python format of the pipeline query can be used, see Getting Started with Aggregation Pipelines in Python for more information. In addition, JSON style syntax with query contained in a JSON object can also be used.

      See Query Documents for more information on the Query Documents feature on MongoDB.



  3. Instead of using Use Query Document, select the Parameterize query option.

    Click Fetch Parameters to populate the Parameter drop-down and select a value. Then select what column to filter on in the Filter By drop-down.

  4. Select either the dot (.) or comma (,) as the Decimal Separator.
  5. Select the Data Type Discovery. This property specifies how many rows to fetch from the input data source, when auto generating the schema after clicking   .

  6. You can also opt to load or save a copy of the column definition.
  7. Click . A new row displays in the JSON list box. Enter the necessary information for each column.



    Property Description

    Name

    The column name of the source schema.

    NOTE: It is recommended to name the column the same as its JSON path for clarity and uniformity.

    JsonPath

    The JsonPath of the source schema.

    Type

    The data type of the column. Can be a Text, Numeric, or Time

    Structure

    Used for more advanced features and are covered in the Row-Wise Array Expansion, Column-Wise Array Expansion, and Bson-Wise Array Expansion  sections. Value is the default structure and will always display data regardless of actual structure.

    Column Count

    Enabled when Column-Expanded Array structure is selected.

    Enter the number of columns for the plugin to generate as columns for that array.

    Date Format

    The format when the data type is Time.

    NOTE:

    To parse and format times with higher than millisecond precision, the format string needs to end with a period followed by sequence of upper case S. There can be no additional characters following them.

    For example: yyyy-MM-dd HH:mm:ss.SSSSSS

    Enabled

    Determines whether the message field should be processed.



    To delete a column, select  or for all the column entries select the topmost , then click .

  8. Date/Time values of output data and Date/Time inputs, where supported, are by default unchanged.

    You can opt to define the Show in Timezone and Source Timezone settings.
