Validate Simulation Run with Radioss Solver

Validate CAE simlation ready elastoplastic curve data for its accuracy.

Step 1: Import Raw Material

  1. Launch AMM and select Elastoplastic.
  2. Configure the file path for material data using Basic Settings.
  3. Import raw material data with stress-strain curves, either from a local file system or AMDC database.

Step 2: Create Solver Ready Material Card

  1. Click Advanced from the Create Material Card section.
    Figure 1. Create Material Card

    Create Material Card
  2. On Advanced Modeler, select Radioss LAW 36.
  3. Edit the necessary parameter values.
  4. Select the required property and geometry. This will be the specimen for the virtual tensile test.

    Based on your simulation selections, the virtual simulation result is displayed.

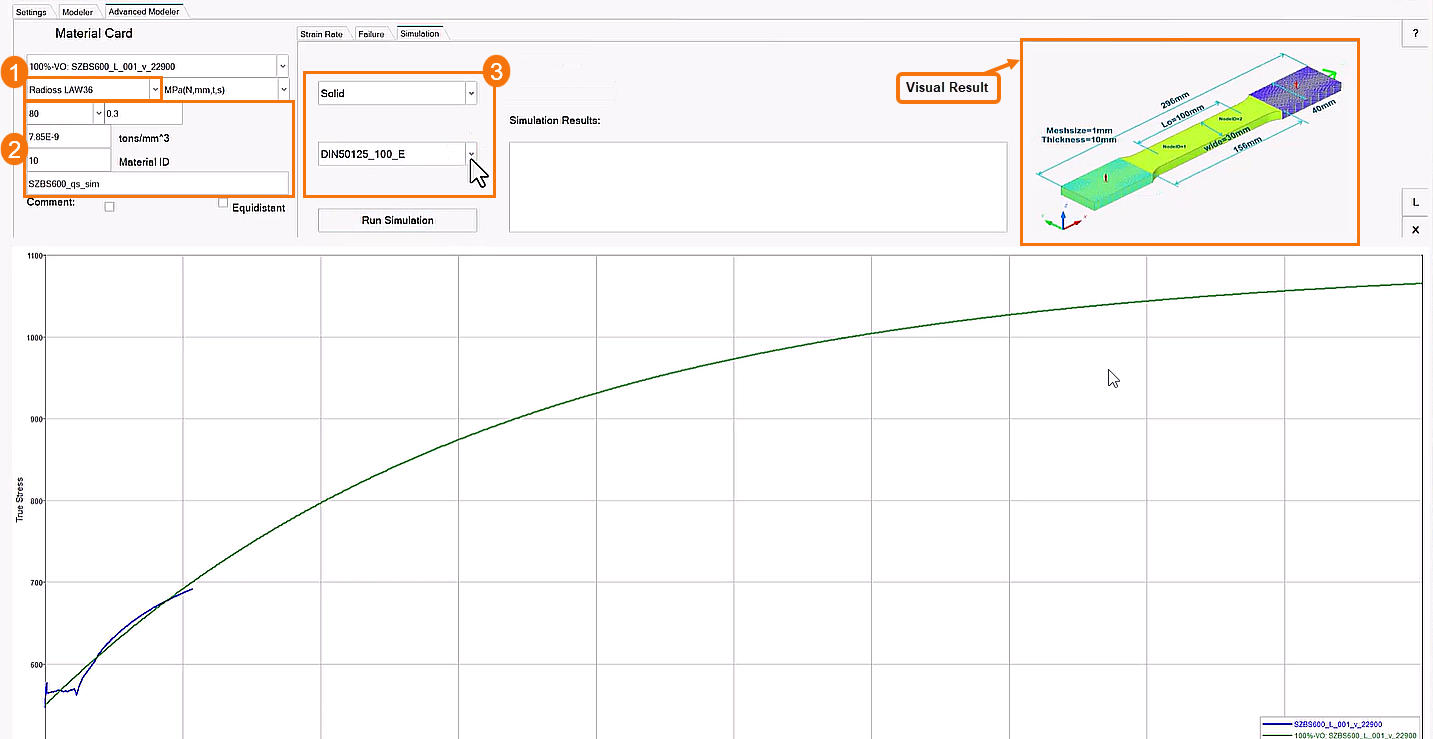

    Figure 2. Simulation Visual Result

    Simulation Visual Result
    Note: You may verify the visual result with different properties and geometries.

Step 3: Run Simulation

Run the simulation with the satisfied visual result.
  1. Click Run Simulation to validate the solver simulation run.
  2. Click OK over the card is generated message. The Console Solver View displays the simulation summary.
    Figure 3. Simulation Summary

    Simulation Summary
  3. Click Stop > Send Command > Close.The visual and chart results from the validation are overlayed for review.
    Figure 4. Simulation Results

    Simulation Results

Step 4: View Existing Runs

  1. Click the button L to view more validation simulation run results. The best approximation will have the good correlation with test data.
    Figure 5. Select All Simulation Run Results

    Select All Simulation Run Results
  2. Click Select All to review the simulation chart and visual results.
  3. From Simulation Results, select the required validated simulation run result to review.
    Figure 6. Review Validated Simulation Run Results

    Review Validated Simulation Run Results
