Check Model

Check Model detects errors such as negative mass for a body and negative diameter for a beam. The types of checks that are conducted are specific to entity types.

Check for Model Errors

Search for unresolved references and invalid data in the model. If errors in the model are detected, open a .txt file to review them.

On the Motion ribbon, under Profile, select Analyst.
Under Check, select the Check tool.

Tip: To find and open a tool, press Ctrl+F. For more information, see Find and Search for Tools.

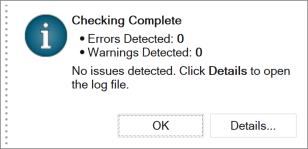

The check is launched. Once complete, a message appears.
To open a .txt file and review any model errors, click the Details button.
