*DEFINE_CURVE_SMOOTH

LS-DYNA Input Interface KeywordDefines a simple smooth function, mainly used to impose a displacement on metal forming tool.

Format


(1)	(2)	(3)	(4)	(5)	(6)	(7)	(8)
*DEFINE_CURVE
`Curve_ID`		`Area`	`Xstart`	`Xstop`	`Xrise`	`Ymax`

Definition


Field	Contents	SI Unit Example
`Curve_ID`	Curve identifier. (Integer)
`Area`	Area under the curve. (Real)
`Xstart`	Starting abscissa value. (Real)
`Xstop`	Stop abscissa value. = 0 `Ymax` is computed to fit `Area`. (Real)
`Xrise`	Rise value from `Y`=0 to `Y`=`Ymax`. (Real)
`Ymax`	Maximum ordinate value. = 0 `Xstop` is computed to fit `Area`. (Real)

Comments

This keyword maps to /FUNCT_SMOOTH.

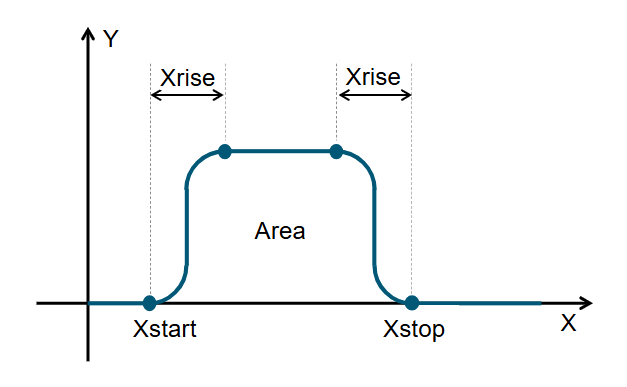

Figure 1.
The option “_TITLE” can be added to the end of this keyword. When “_TITLE” is included, an extra 80 characters long line is added after the keyword input line which allows an entity title to be defined.
