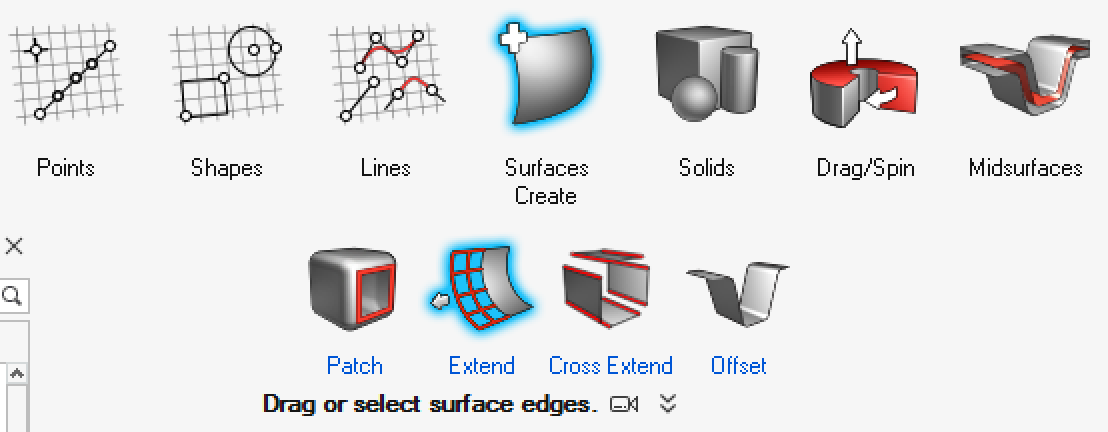

Ribbon: Geometry
Tool: Surface
Option: Extend
Use the Extend tool to create tangent or normal extension surfaces.
