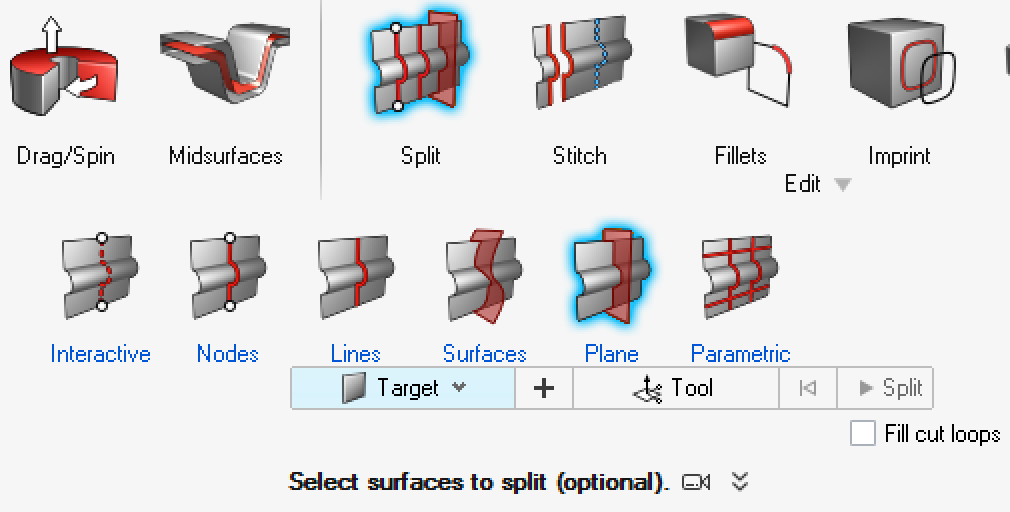

Ribbon: Geometry
Tool: Split
Option: Plane
Use the Split with Plane tool to split surfaces, solids, or lines with a plane or a surface.
