Ribbon: Topology

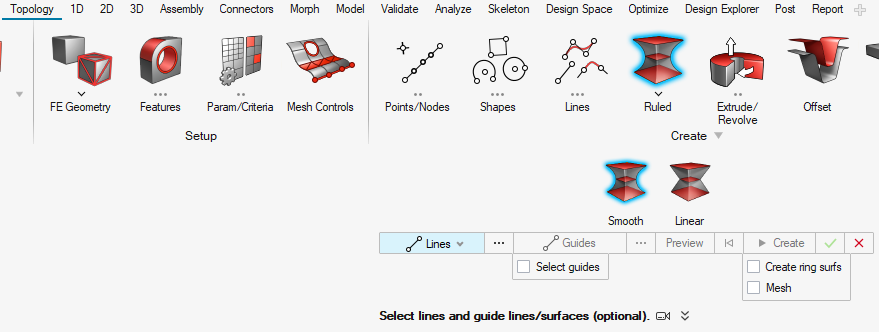

Tool: Ruled

Use the Ruled tools to create surfaces/solids by interpolating lines and surfaces either linearly or smoothly.
