Location: Model Browser

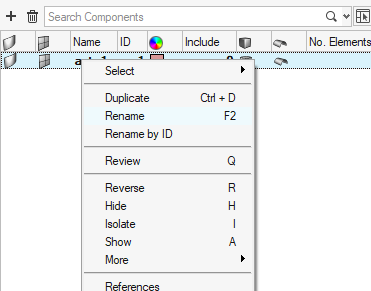

To rename individual entities, select the entity, right click, and select Rename, or select the entity and enter a new name in the Name field in the Entity Editor.
