Ribbon: Analyze
Tool: Loads->Pressures

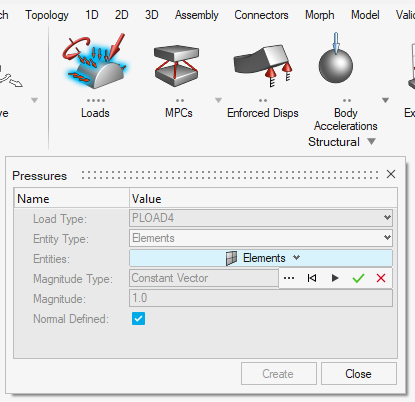

Create pressure loads on elements by applying a load, representing pressures, to a 1D or 2D element, or to the face/edge of a solid element. Use the Entity Editor to update/modify the pressure.
