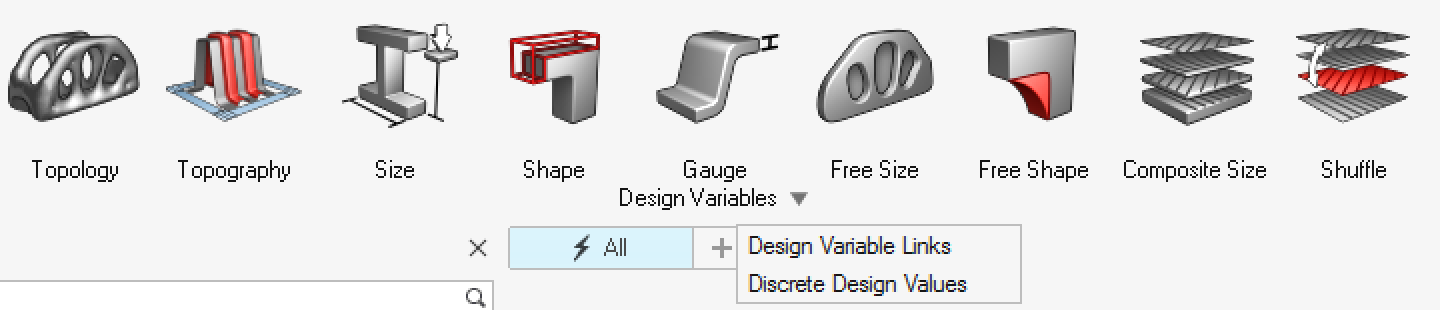

Ribbon: Optimize
The main optimization tools can be found in the Optimize ribbon. The icons launch the traditional panels.
