Ribbon: Topology
Tool: Create Points/Nodes, Extract Points/Nodes

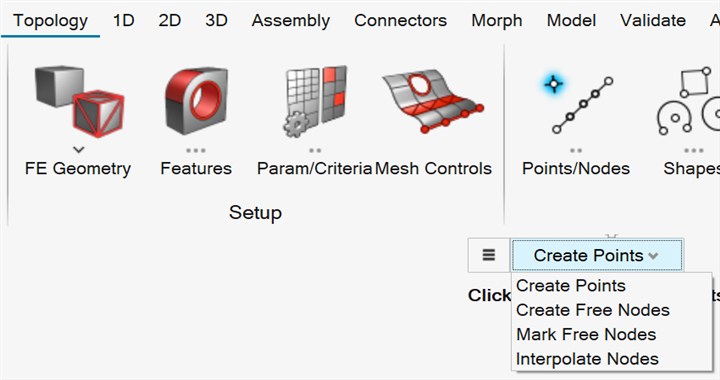

Use the Create Points/Nodes tool to create and edit points/free nodes on geometry surfaces and lines or in space.

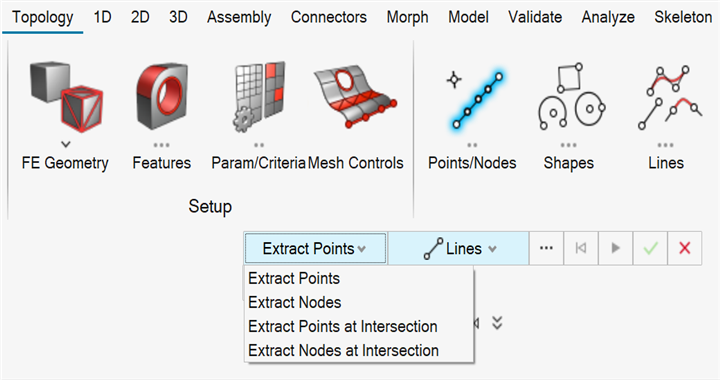

Use the Extract Points/Nodes tool to interpolate and divide an edge or line, and find the center of an arc, fillet, or multiple curve segments.
