Ribbon: Home
Tool: Move

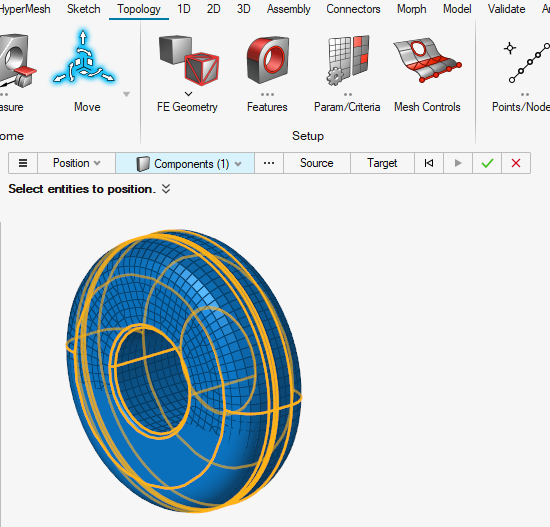

Use the position mode within the Move tool to position selected entities, by picking one, two, or three source and target location pairs.
Visit help
