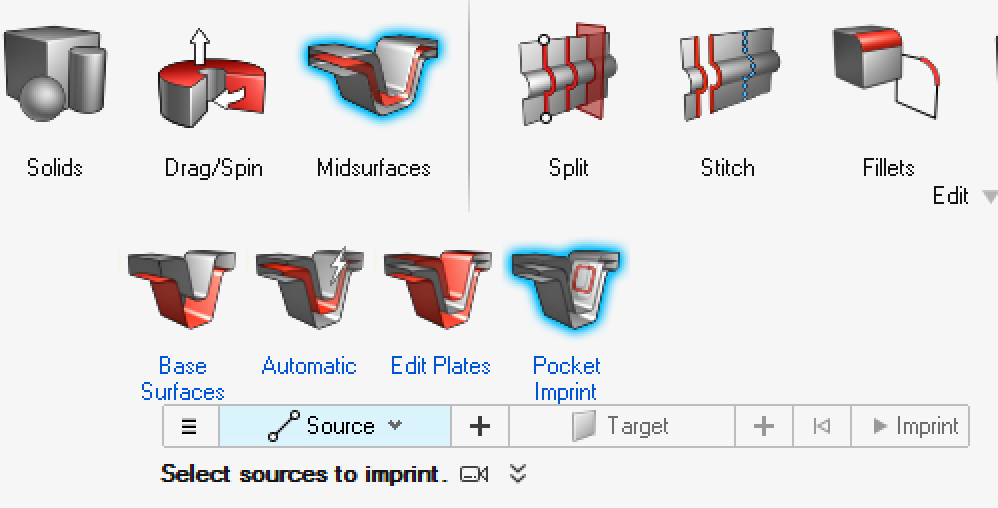

Ribbon: Geometry
Tool: Midsurface
Option: Pocket Imprint
Use the Pocket Imprint tool to imprint pockets, fillets, and other geometry features from the source geometry onto the midsurfaces.
