Ribbon: Geometry
Tool: Midsurface

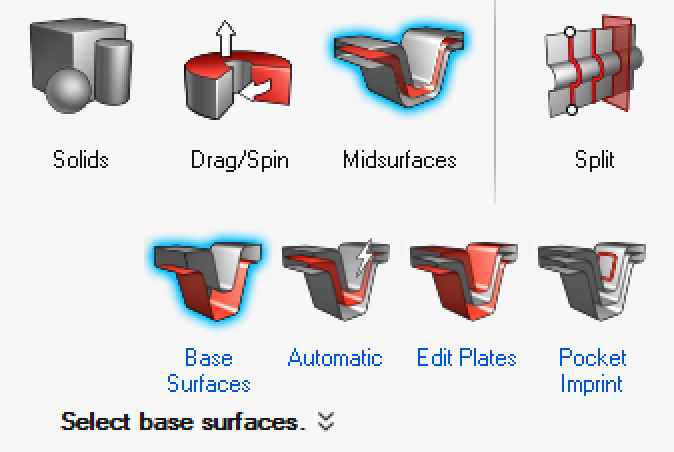

Option: Base Surfaces
Use the Base Surfaces tool to specify a distance from the base surfaces of multiple solids that you wish to treat as if they were continuous. This will help generate separate-but-aligned midsurfaces during extraction.
