Ribbon: Geometry

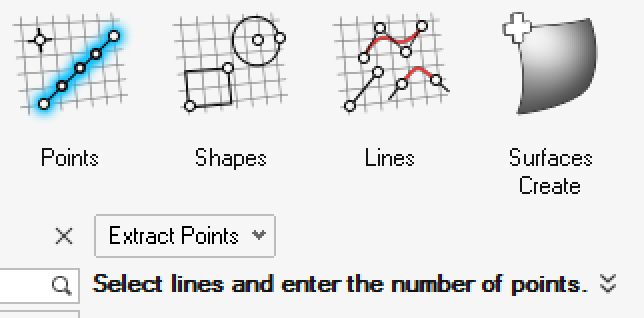

Tool: Extract Points
Use the Extract Points tool to interpolate nodes to divide a line or edge into equal parts as references for use with other tools. You can also use the Extract Points tool to find the center of an arc or fillet, or find the center of multiple curve segments.
