Ribbon: Geometry
Tool: Circles
Use the Circles tool to create a circle as the first step to create the cylinder.

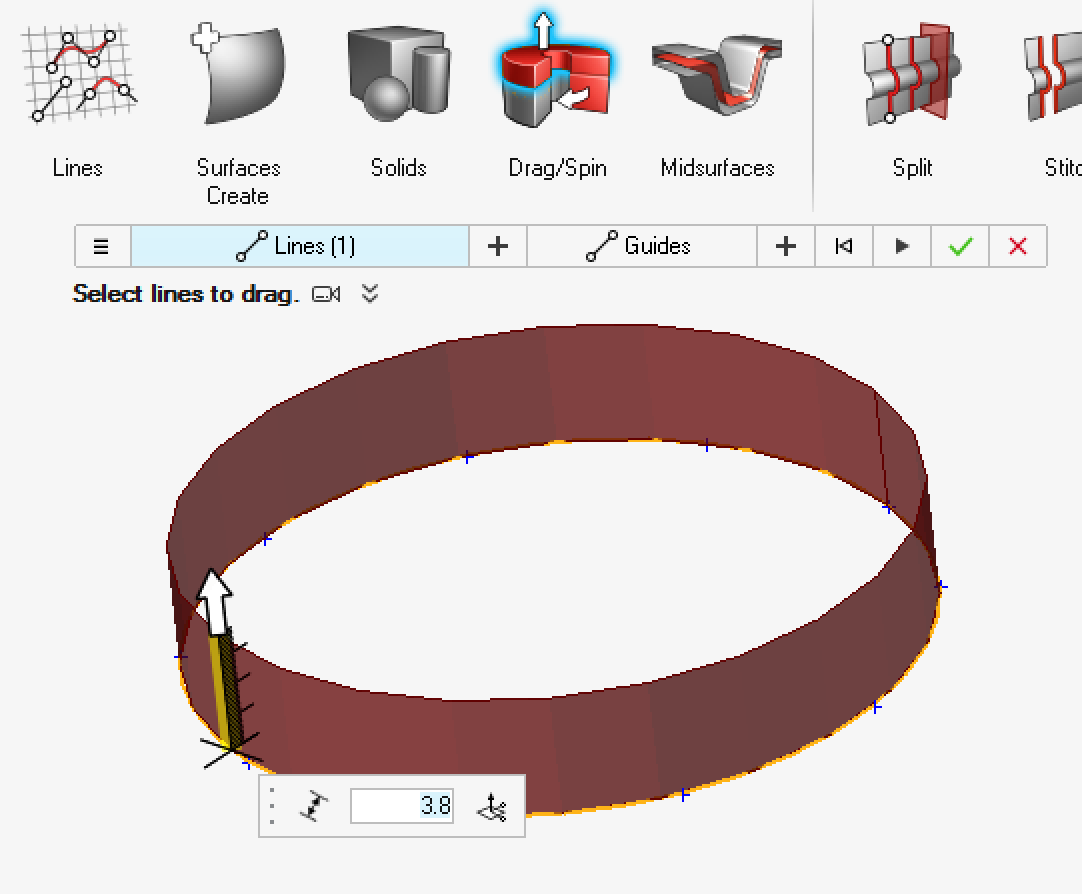

Ribbon: Geometry
Tool: Drag
With the circle created, the Drag tool is used to drag the circle geometry a distance to create the cylinder.
