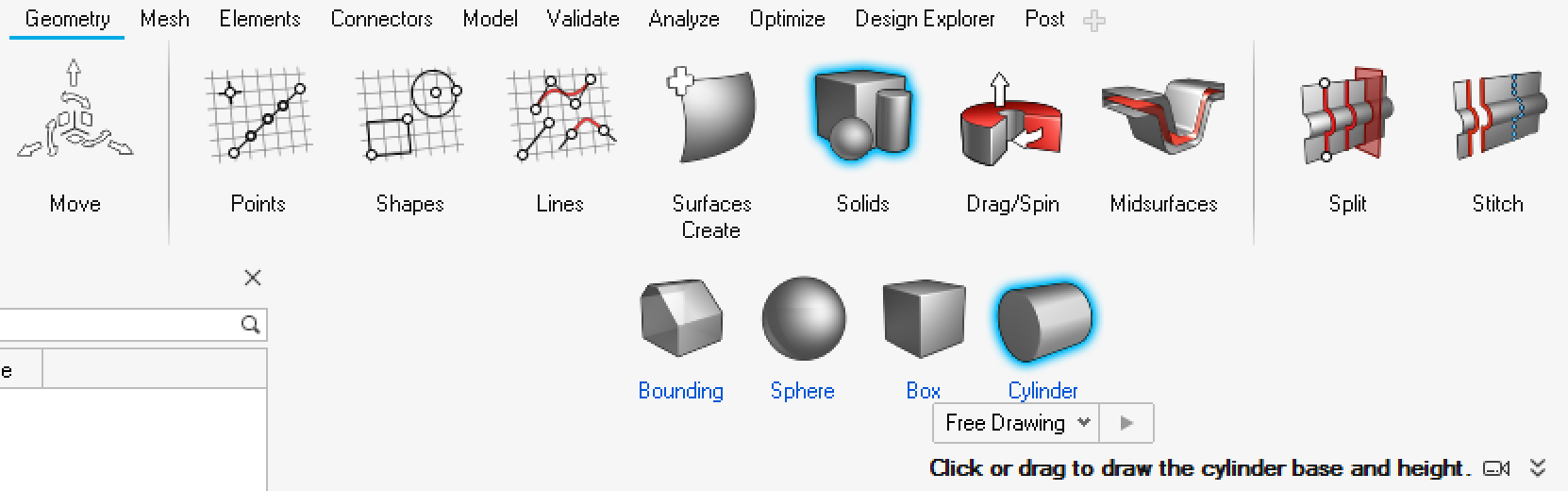

Ribbon: Geometry
Tool: Solids
Option: Cylinder
Use the Cylinder tool to create cylinders with solid or bounding surfaces.
