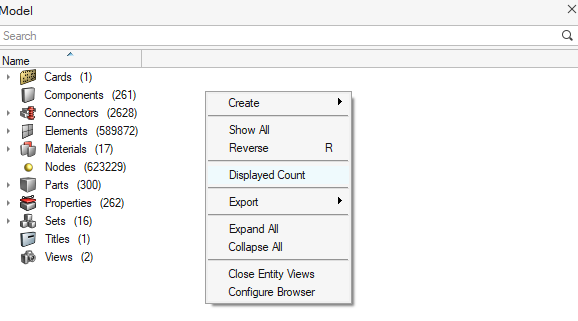

Location: Model Browser-> Right click menu
Tool: Displayed count
Opens the Entity Count dialog, which provides the displayed entity count for all the entities that are displayed in the graphics.
An optional ‘All’ column can also be turned on to get the full count of entities.
Visit help
