Ribbon: Elements
Tool: Edit Menu
Option: Change Element Config

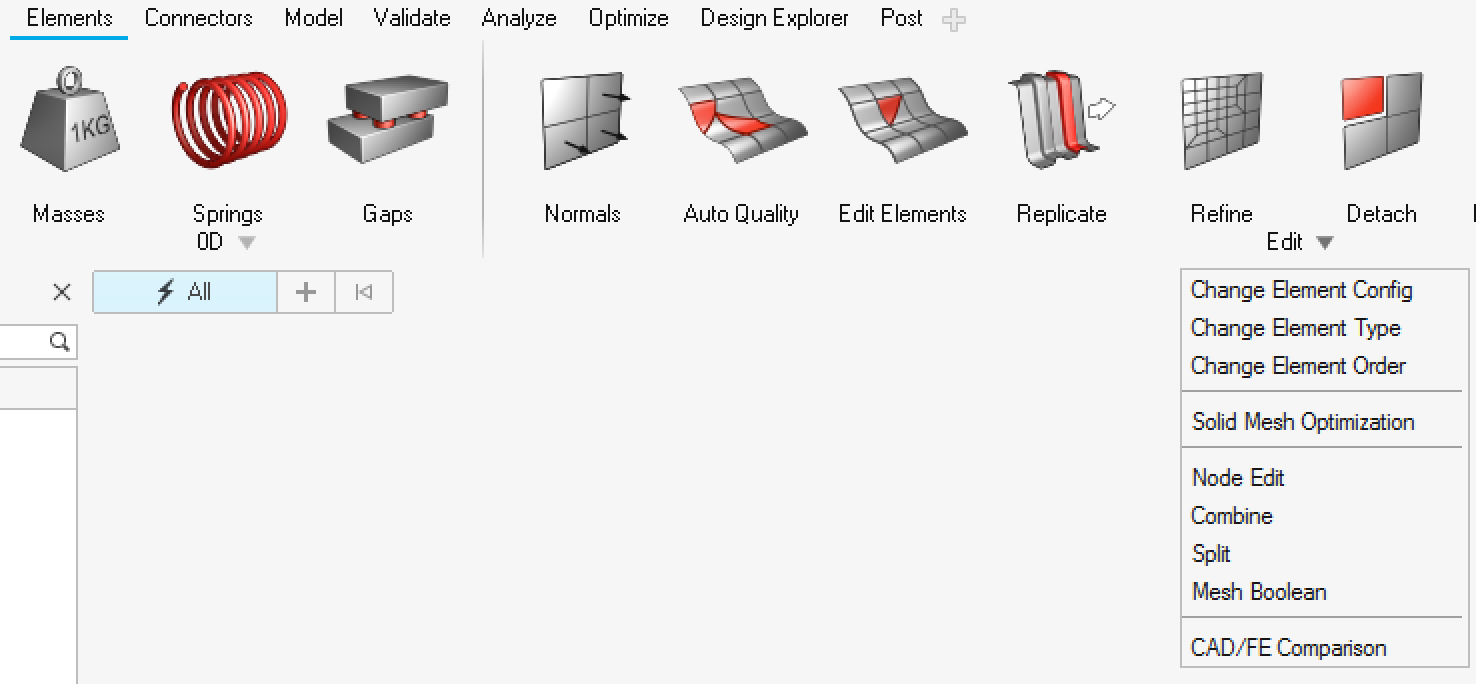

From the Elements ribbon, click the arrow next to the Edit tool set name and select Change Element Config from the menu.
