Ribbon: Geometry
Tool: Solids

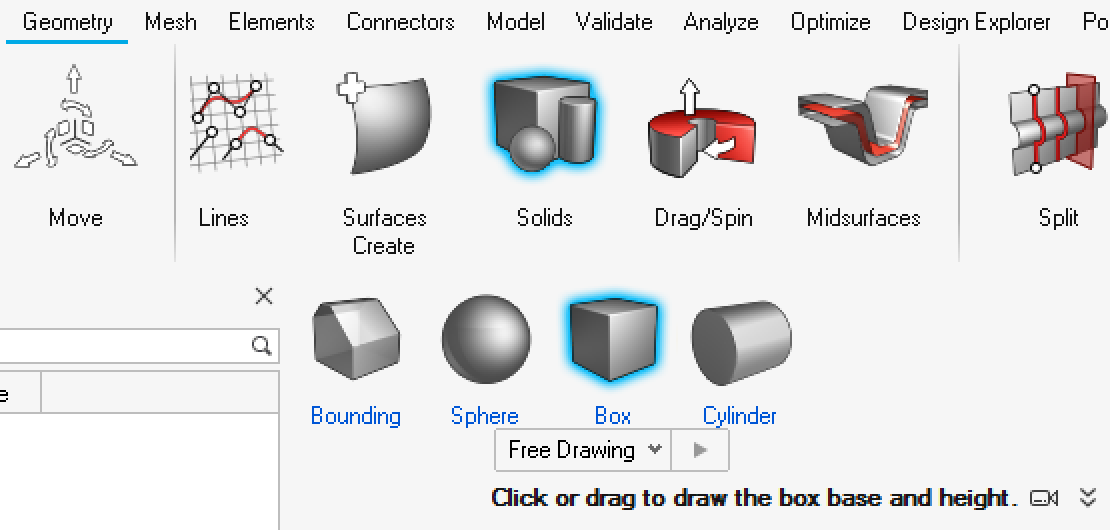

Option Box
Use the Box tool to create boxes with solid or bounding surfaces.
