Ribbon: Mesh

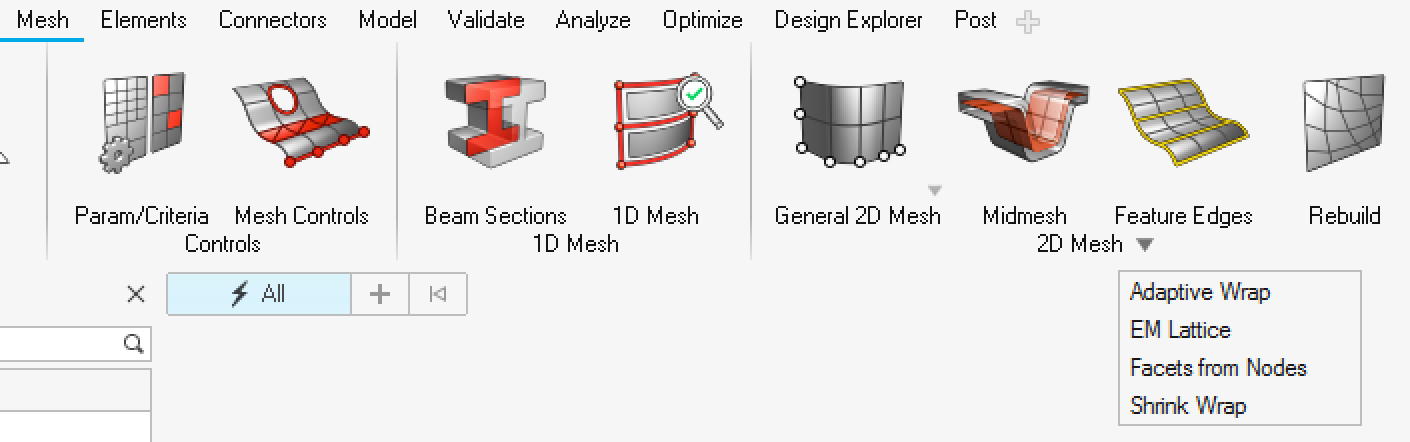

2D Mesh Drop Down Menu
Adaptive Wrap meshing is a useful utility to get a clean, water tight shell mesh out of 2D mesh containing several intersecting parts and small gaps which do not need to be modeled.
