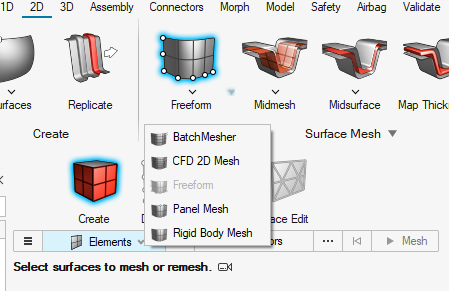

Ribbon: 2D
Tool: General 2D Mesh,BatchMesher,
Rigid Body Mesh, General 2D Mesh
The General 2D Mesh tool is used to create meshes similar to the Automesh tool in previous versions of HyperMesh.
