Thermal Effects (Combined) Analysis

In this tutorial, you will evaluate squeak and rattle issues when exposed to thermal loading.

A typical challenge faced in the automotive industry is how does the vehicle interior perform under driving conditions while the vehicle has been parked in the sun for many hours.

To answer this question, vibration loads responses (Dynamics) need to be superposed to the temperature effect on parts (Thermal Expansion – Static), gaps are reduced for example. In this workflow, you will evaluate the squeak and rattle issues in a dynamic condition where the vehicle, in this case, parked under sunlight with a spike in internal temperature (Static loadcase). Later the car is driven, which is exposed to Dynamic Loading.
The objectives of this tutorial are:
  • Prepare the FE model for analyzing squeak and rattle issues.
  • Apply a static load of amplitude -5.55 to the certain node(s) on Lower Control Panel component. This simulates a touch point scenario.
  • Run analysis and post-process the results.
For this tutorial, use a new model and prepare the model analysis setup. For this workflow, refer the following sections from the Detailed Risk and Root Cause Analysis tutorial:Import a model with Dynamic Event loadcase. For this workflow, you can use the model with solver deck created in the Detailed Risk and Root Cause Analysis usecase along with the Dynamic Loadcase. Choose the workflow according to your needs and refer to sections mentioned above for the procedures.

For this tutorial, you will use the solver deck exported from the Detailed Risk and Root Cause Analysis usecase. Once you import the Dynamic Loadcase solver deck, you can proceed with Thermal (Static) Loadcase setup.

Define Thermal Loadcase

In this step, you will create a thermal loadcase.

  1. From the HyperMesh NVH menu bar, select Squeak and Rattle.
    The SnRPre and SnRPost ribbons open.
  2. From the SnRPre ribbon, select the arrow next to the Dynamic Event tool and select Thermal Event.
    Figure 1.
    A guide bar opens.
  3. Select the nodes on the top surface of the IP Substrate and Dashboard Panel components.
    Figure 2.
  4. In the guide bar, enter 90 for the temperature value.
  5. Click .
    The Thermal loadcase with the load collectors and other entities required for the simulation is created. Respective load collectors get created and are assigned to the loadstep.
    A user message opens.
    Figure 3.
  6. Click OK.

Define Constraint

In this step, you will define model constraints.

  1. In the SnRPre ribbon, select the Constraints tool from the Thermal Event tool group.
    Figure 4.
    A guide bar opens.
  2. In the modeling window, select the node shown in Figure 5.
    Figure 5.
  3. In the microdialog, select SnRD_STATIC_Temperature_1 for the Loadstep option.
  4. In the microdialog, select all degrees of freedom.
    Figure 6.
  5. Click .
    The Static loadcase with the load collectors and other entities required for the simulation is created. Respective load collectors get created and are assigned to the loadstep.

Import Model and Results File

In this step, you will use SnRD Post to post process the results.

  1. Open HyperView.
  2. From the menu bar, click File > Load > Preferences File.
    The Preferences dialog opens.
  3. From the Preferences dialog, select Squeak & Rattle and click Load.
    The SnRD menu is created in the HyperView client.
  4. Select SnRD > SnRD-Post.
    The SnRD Post Processing tool opens.
    Figure 7.
  5. Using the file browse option , select the OptiStruct solver file which was exported in Export OptiStruct Solver File for Model File.
    Note: Pre output CSV file containing the E-Lines definition is sourced automatically.
  6. Click .
    A file browser dialog opens.
  7. Select the Tutorial_IP_SNR_Model.pch and Tutorial_IP_SNR_Model.h3d files from the tutorials folder.
    A working status dialog opens while the H3D data is read.
  8. Enable the checkbox against the subcase in the Subcase selection table.
  9. Click in the Save Session File entry field.
  10. Browse and select the required folder where the post processing session and data will be stored.
    Figure 8.

Post Processing

In this step, you will perform a Full Analysis to understand the squeak and rattle risks in the model.

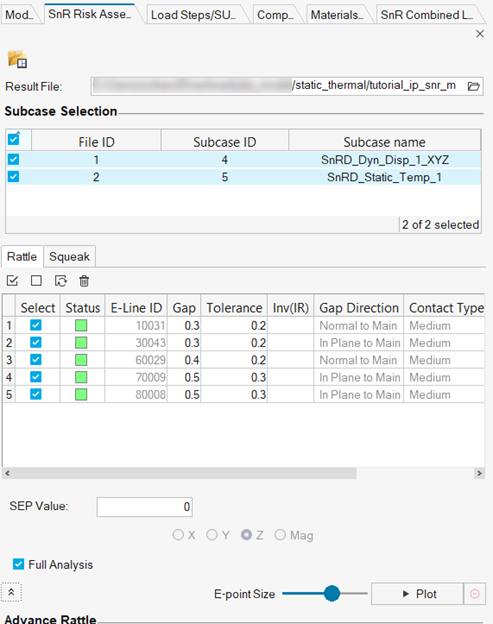

  1. In the Post Processing tab, define the following parameters.
    1. For Analysis Type, select Rattle & Squeak.
    2. For Line(s) to Evaluate, select All.
    3. For % statistical evaluation, enter 0.
    4. For Session Type, select Full Analysis.
  2. Click Execute.
    Note: Execution of Full Analysis will take a considerable amount of time to chart histograms and plot contours based on the machine's performance.
    An execution success message opens.
    Figure 9.
  3. Click Close.
Full analysis creates 22 pages containing all the details. The summary for Dynamic Loadcase Rattle analysis can be found on page one.
Figure 10. Rattle Summary Dynamic
Summary for Dynamic Loadcase squeak analysis can be found on page eight.
Figure 11. Squeak Summary Dynamic
Summary for Thermal Loadcase rattle analysis can be found on page 12.
Figure 12. Rattle Summary Thermal
Summary for Thermal Loadcase squeak analysis can be found on page 19.
Figure 13. Squeak Summary Thermal

Combined Loading

In this step, you will perform a Combined Loading study to understand the thermal effects on the squeak and rattle issues under Dynamic Loading condition.

  1. Select the Combined Loadings tab.
    Figure 14.
  2. From the Loading Type 1 drop-down list, select dynamic loadcase.
    The Affects Gap for loading type 1 is disabled.
  3. Click Summary Analysis.
    Summary Analysis creates a summary for the combined loading effects on all E-Lines.
  4. Click Combine Results.
    The Combined Loading summary page is created.
    Figure 15.
    Considering the 19513009 E-Line, the following observation that can be made for the study: The Relative Displacements has increased from 1.83 mm to 2.09 mm under thermal effect.
  5. Enable the Affects Gap checkbox from the Loading Type 2 list.
  6. Select 19513009 from the E-Line(s) Selection list.
  7. Click Full Analysis.
  8. Click Combine Results.
    The combined effect on the selected interface is plotted in the results page.
    Figure 16.
    The following changes can be observed from the plots:
    • NewGap_Nominal_LC5_R2_Z and NewGap_Tolerance_LC5_R2_Z are introduced in the analysis. These are the changes in gap and tolerance due to thermal effects.
    • The relative displacement has reduced from 2.09 mm to 1.83 mm. This analysis states that the thermal effects has reduced the relative displacement, in turn leading to reduced rattle noise.
