HS-1652: Submit HyperStudy Jobs to Altair One

Tutorial Level: Intermediate In this tutorial, you will learn how to submit HyperStudy jobs to Altair One HPC.

Before you begin, copy the model files used in this tutorial from <hst.zip>/HS-1652/ to your working directory and make sure that Altair One extension is active and displayed in the GUI.
Figure 1.

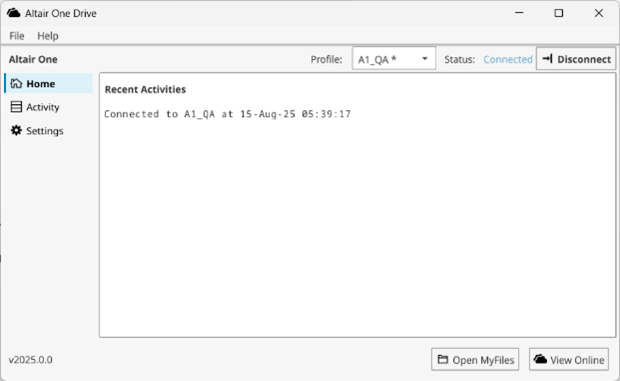

Another important step is mounting Altair One drive. Make sure that Altair One Drive is installed and it is connected to an appropriate profile.
Figure 2.

Load HyperStudy Archive

  1. Start HyperStudy.
  2. Load the archive in the tutorial directory.
    1. From the menu bar, click File > Open.
    2. On the ribbon, click .
    3. Select HS-1652.hstx.

Create a DOE Approach

  1. Add a DOE.
    1. In the Study Explorer, right-click and select Add from the context menu.
      The Add dialog opens.
    2. From Select Type, choose DOE.
    3. For Definition from, select an approach.
    4. Select Setup and click OK.
  2. Go to the DOE > Specifications step.
  3. In the work area, set the Mode to Sobol Sequence and set Number of Runs to 8.
  4. Click Apply.

Perform Solver Mapping

This step is not required as HyperStudy automatically matches the solver versions. However, this option provides mapping local solver version to the one in the Altair One system if a specific version of a solver is needed.

Register a solver.
Figure 3.
  1. Under the Altair One ribbon, click Register Solvers and apply the appropriate solver version of Altair One side (OptiStruct is the solver type in this tutorial).
  2. Click Save.
Figure 4.

Submit the Study to Altair One

  1. Run the study.

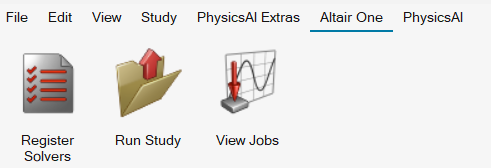

    1. Under the Altair One ribbon, click Run Study.
      Figure 5.
    2. Under Run selected Approach option, select DOE 1.
      Note: A study can be submitted with a single approach or multiple approaches if the batch tasks function is active.
  2. Select the appropriate appliance and then click Submit Job.
    This sends the HyperStudy DOE task to Altair One HPC for evaluations.
    Figure 6.

Monitoring Job Status

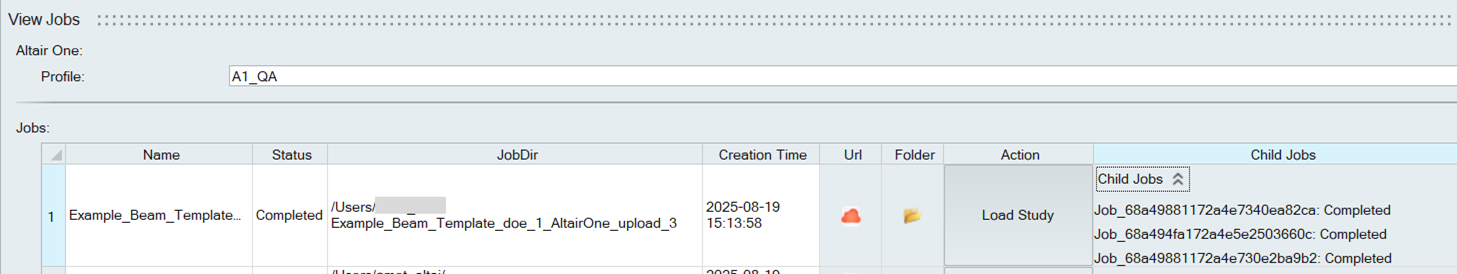

Using the View Jobs tool, you can track the job status including the entire set of child processes and load the evaluated study into the local session for post-processing.
Figure 7.

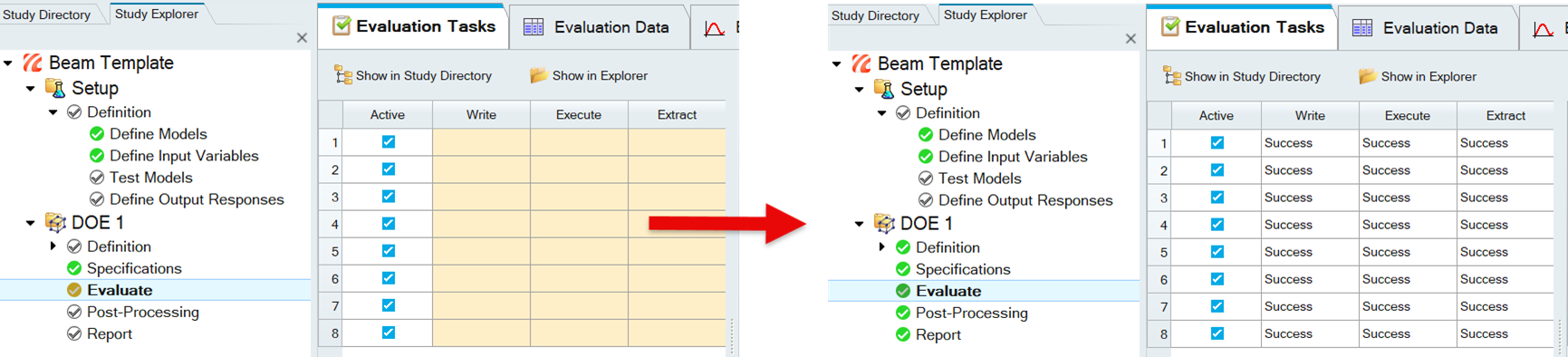

  1. Click on Load Study and replace the existing study with the evaluated one.
    Note: The Load Study option will load the study evaluated on Altair One into the local HyperStudy session.
    Figure 8.

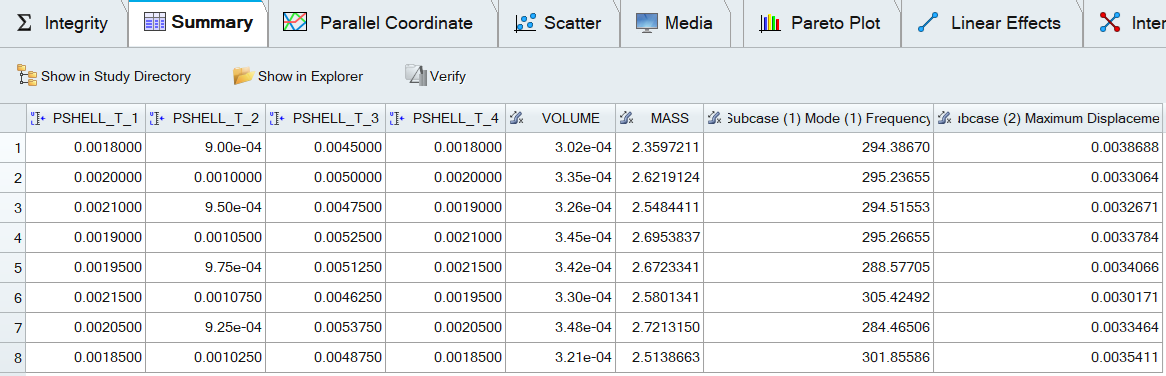

  2. Go to the Post-Processing step and observe the simulation data in the Summary table.
    Figure 9.
