Export Springback Compensation
Export springback compensation data for use in Cimatron in addition to NX and Catia for geometry compensation.
- From the Run History, select a run that includes a springback analysis.
-
From the Tryout ribbon, select Compensate.
-
On the guide bar, click Compensate and select
Export from the dropdown.
- On the guide bar, click Reference Part and click the reference part in the model.
- On the guide bar, click Fixture Points and click any number of points in the model to position the springback part on the reference part.
-
On the guide bar, click Apply
.

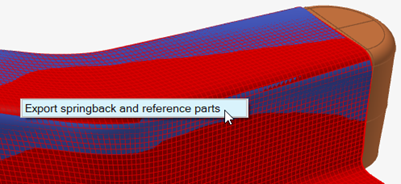

The solution (.txt) file is exported to the current run folder that can be used with Catia, NX, or Cimatron. You can right-click the Run dropdown in the Analysis Explorer and select Open Run Folder. - To export the reference part and springback part after positioning, right-click the model and
select Export springback and reference parts.
An .stl model of the springback part and reference part is exported to the current run folder. You can right-click the Run dropdown in the Analysis Explorer and select Open Run Folder.
