SimLab Tutorial Summary: RMM 2D Impact of PWM losses for PM motors
/!\ IN PROGRESS /!\
Description
In this study, we will compute losses coming from current ripples due to PWM supply.
It will be done through 3 steps:

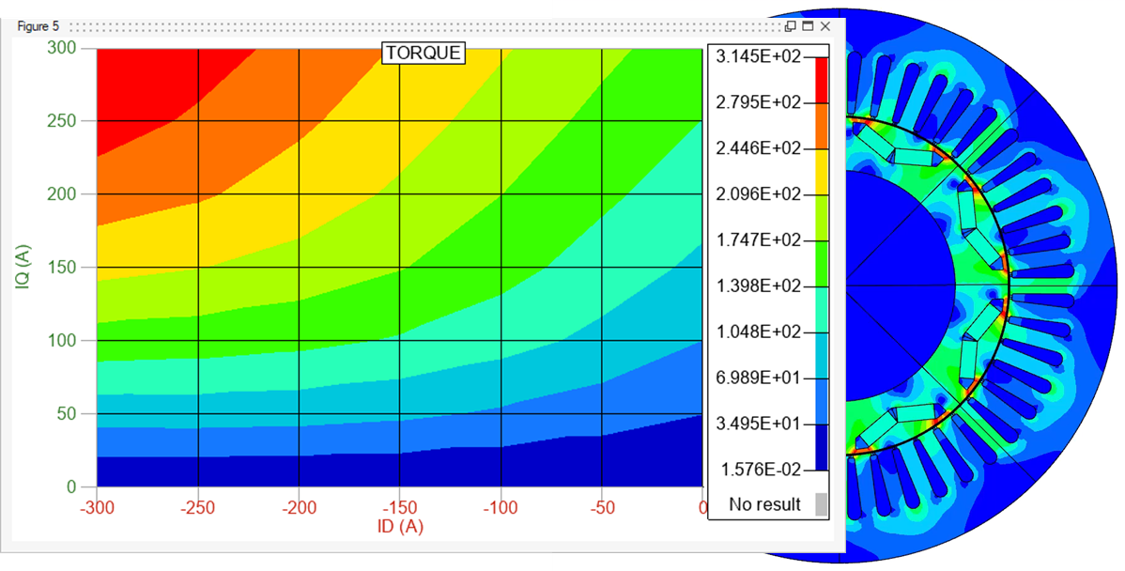

- Carry out Look-Up Tables with RMM solution from SimLab - EM

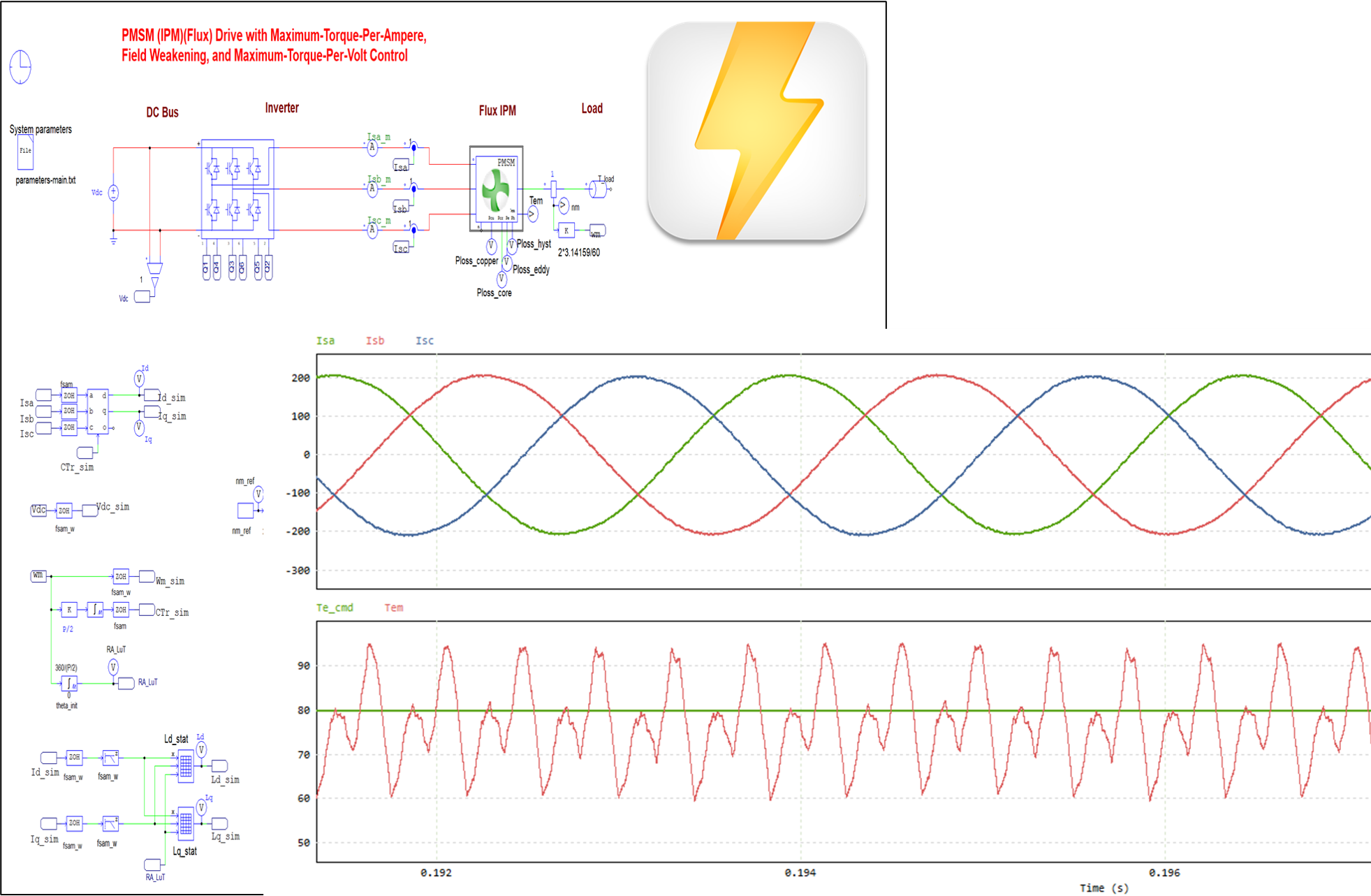

- Run PSIM

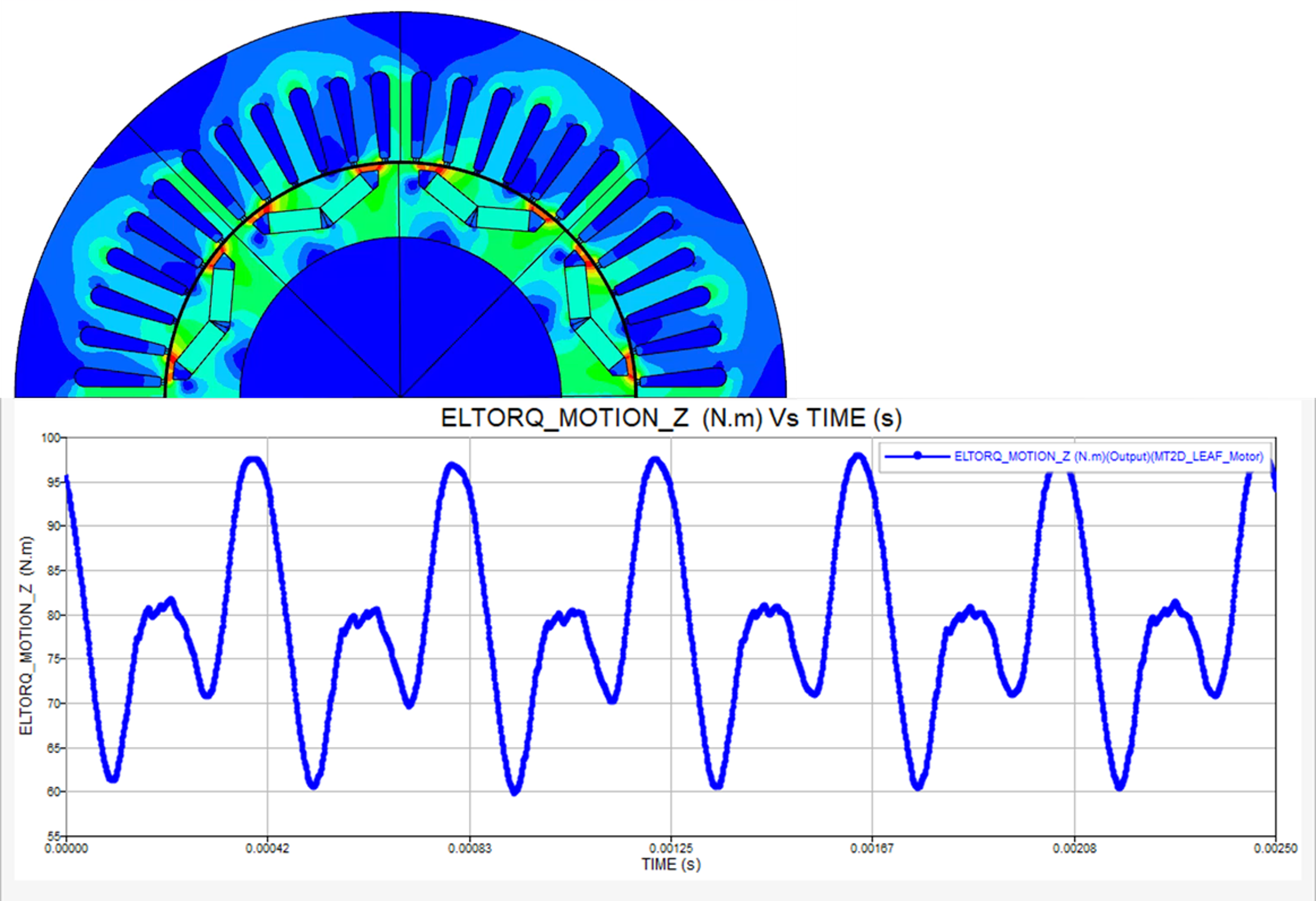

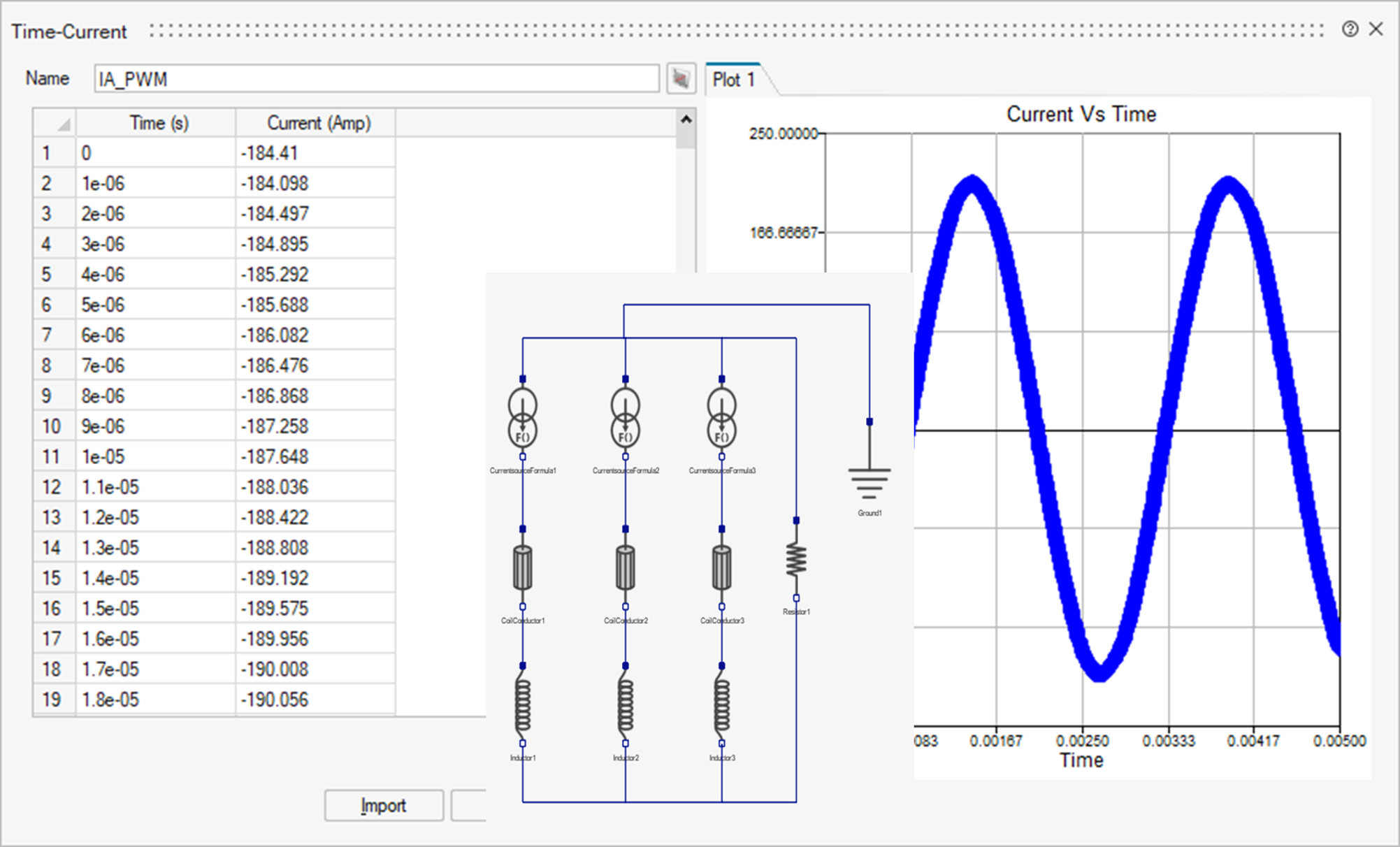

- Come back to SimLab-EM with current waveforms computed by PSIM in magnetic transient solution
Analysis
/!\ IN PROGRESS /!\
Example access
All files corresponding to this example are accessible in the following link: Tutorial package.
Remarque : The tutorial packaging may evolve with each new version,
but not mandatory. The latest version of the tutorial package will automatically
work with the most recent release of SimLab.
Example: After installing the SimLab 2025 release, you can find the latest Tuto_2024.zip package. This means that the tutorial has not been updated since 2024 release, that the tutorial does not need to be updated, and that the tutorial still works in 2024.1 release and 2025 release.
Step to follow:
- to follow the example step by step, the corresponding files are in
"Example_name_StepByStep" folder containing:
- Input folder: contains initial *.slb databases an other files needed to be able to play manually the tutorial by following the step by step document
- Output folder: empty (contains the obtained results after to play the tutorial)
- Tutorial folder: contains the document describing the example step by step
- to play the tutorial by scripts, the corresponding files are in
"Example_name_PlayScripts" folder containing:
- Input folder: contains initial *.slb databases an other files needed to be able to run scripts of the tutorial
- Output folder: empty (contains the obtained results after to play scripts of the tutorial)
- ScriptsTutorial folder: contains script files to be able to play each analysis
