SimLab Tutorial: MAC 2D Induction Motor
Description
The studied device, an induction motor presented in the figure below, includes the following elements:
- a fixed part (stator) including yoke, 48 slots, and windings
- an air gap
- a rotational part (rotor) with a squirrel cage (58 bars)
This tutorial first introduces how to use MAC2D solution to perform basic steady-state analysis of the motor and then uses DoE solution to obtain the motor characteristics with the parameter slip. Finally, the steady-state results will be used to initialize the transient simulation (MT2D solution) for a more comprehensive analysis.
Geometry import and meshing

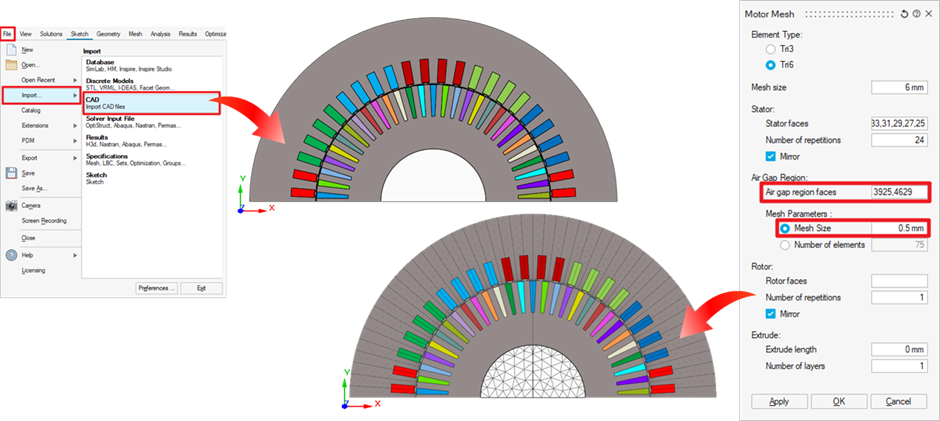

After importing the provided motor 2D CAD file (*.xmt_txt format), SimLab's Motor Mesh tool can easily generate a symmetrical mesh suitable for the 2D motor analysis.
Study 1: Basic steady-state analysis

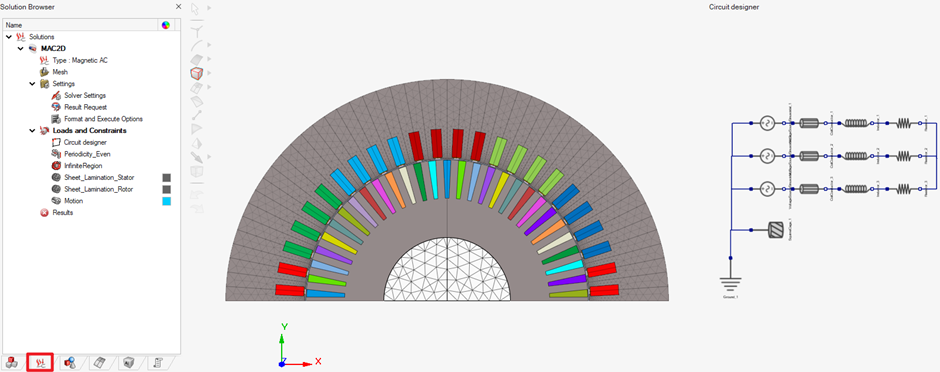

As shown in the figure below, after setting up all the required LBCs and the coupling circuit, the configuration of basic steady-state solution is completed.

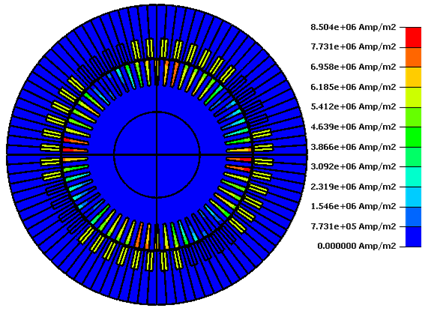

The full model result view is shown below:
Study 2: Torque-speed characteristic

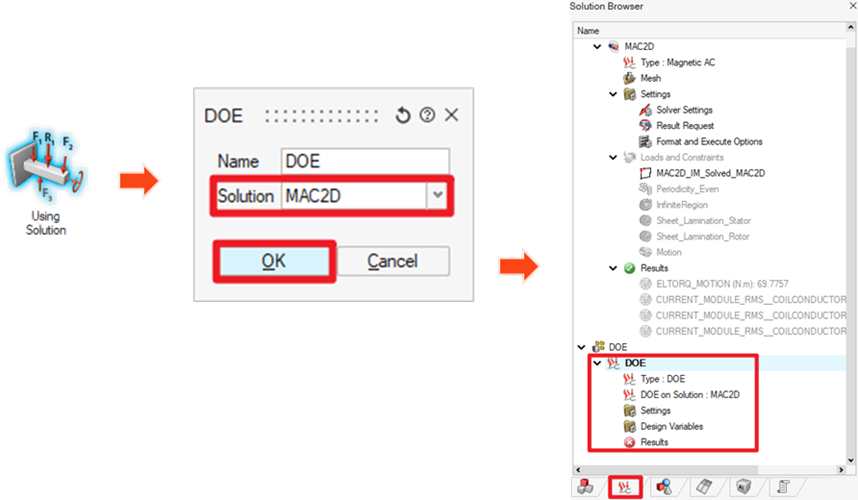

The previous basic steady-state solution can be further connected with a DoE solution in SimLab to run parameter sweeps.

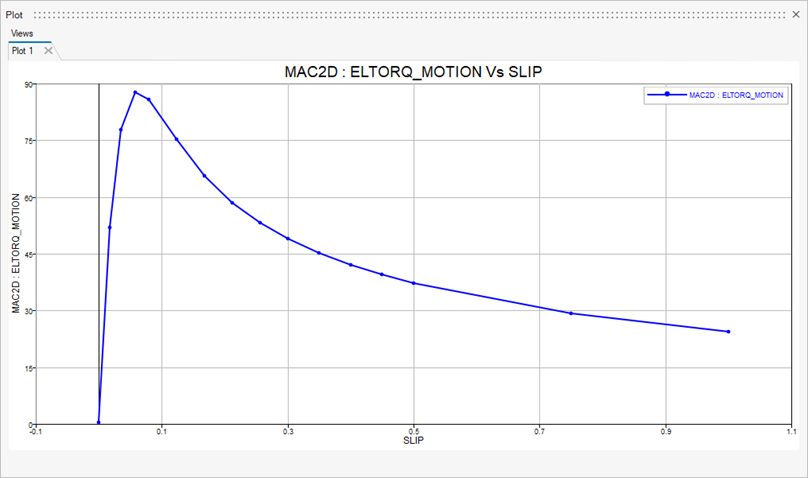

The Torque v.s. SLIP curve can be obtained after setting the scanning parameter to SLIP.
Study 3: Transient simulation

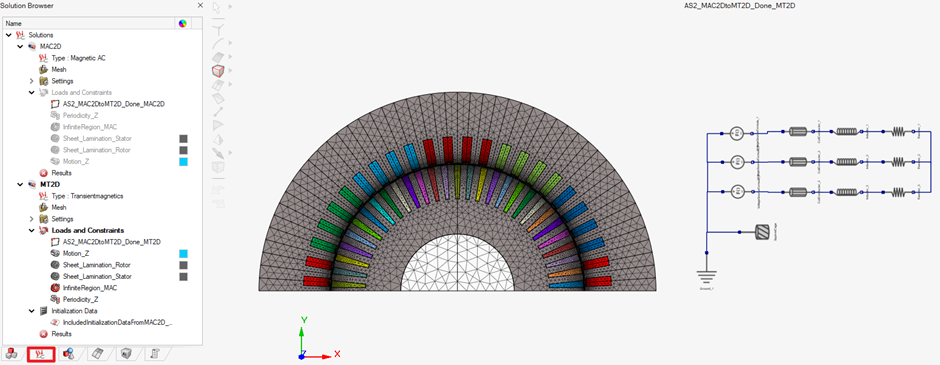

The last study is a transient simulation for rated load, initialized from a previous steady state study. In SimLab, the initialization is realized by the solution coupling technique, as shown below:

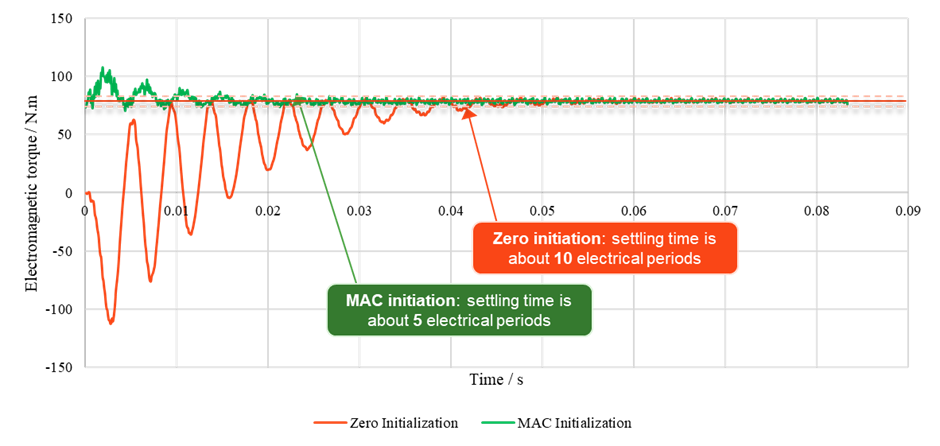

Initializing from the steady state results can reduce the setting time compared to initializing from zero, effectively reducing simulation time.
