Triangle Wave Generator

Category: Toolbox > eDrives > eMotors (Legacy) > Sources

Description: The Triangle Wave Generator block provides a symmetric triangular wave signal of amplitude 1 from a specified input frequency. This block is generally used as a basic element in motion control applications for generating various pulse-modulation schemes for motor drives.

Example

Diagram name: Triangle Wave Generator

Location: Examples > eDrives > eMotors (Legacy) > Transforms

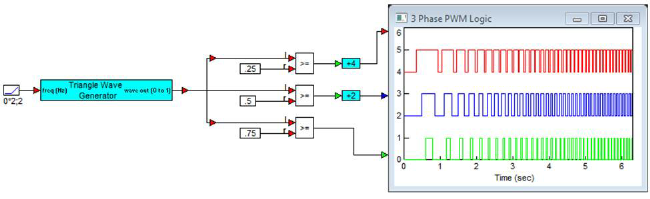

In this example, three comparators are used to create logic states for three-phase PWM from the triangle wave generator. A null offset of 1 Hz was used in this example.
