Submachine Data Browser

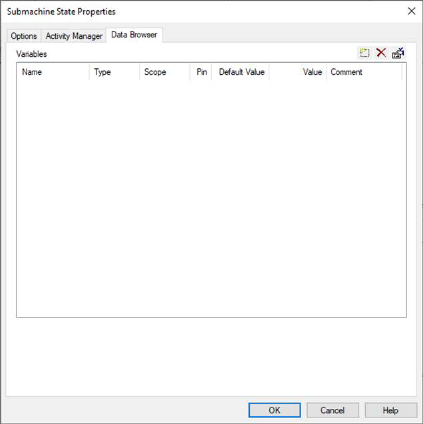

The Data Browser lists the current variables and variable attributes for the submachine. You can add and delete variables, and update their attributes through this window.

Comment: Indicates user-specified comments.

Default Value: Indicates the initial value for the variable.

Name: Indicates variable names.

Pin: Indicates the input or output connector number on the submachine block. For State ID, it indicates the active state from the given region.

Scope: Indicates how the variable is scoped.

Type: Indicates the variable data type.

Value: Indicates the current value of the variable.
