Stepper Motor-IRTF

Category: Toolbox > eDrives > Motors

Inputs:

      U_s: Input voltage vector for motor in alpha-beta convention.

      T_l: Load torque.

      lock_on: Clamp enable for motor shaft. When input is set to 1, the shaft speed is forced to zero. (binary input)

Outputs:

      psi_R: Rotor flux vectors in d-q axes convention.

      i_s: Output current vector for stator currents in alpha-beta convention.

      T_me: Mechanical torque generated by the motor.

      theta_me: Mechanical angular position of the rotor.

      w_me: Mechanical angular speed of the rotor.

Description: The Stepper Motor-IRTF block is a motor model for simulation of stepper motors. This is a mathematical model of an electrical machine based on the Ideal Rotating Transformer model.

Graphical user interface, text, application

Description automatically generated

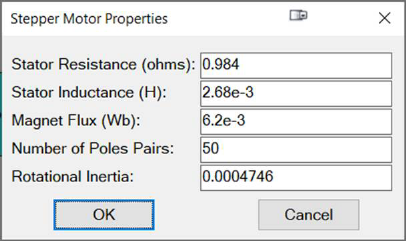

Magnet Flux (Wb): Indicates the estimated magnet flux.

Number of Poles Pairs: Indicates the number of motor pole pairs.

Rotational Inertia: Indicates an approximation of inertial load on rotor shaft.

Stator Inductance (H): Indicates the measured stator inductance of the motor.

Stator Resistance (ohms): Indicates the measured stator resistance of the motor.
