Square Wave Inverter-3 Phase

Category: Toolbox > eDrives > eMotors (Legacy) > Sources

Description: The Three Phase Square Wave Inverter block provides bipolar three-phase square wave output from an input frequency.

Negative Rail Voltages: Defines the lower voltage rails for inverter supply.

Positive Rail Voltages: Defines the upper voltage rails for inverter supply

Example

Diagram name: Three Phase Square Wave Inverter

Location: Examples > eDrives > eMotors (Legacy) > AC Induction

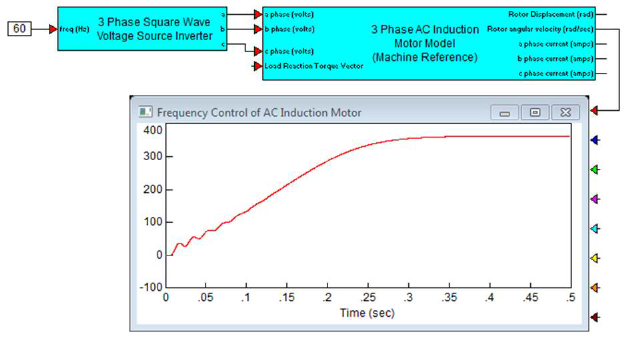

The following illustrates a simple example of frequency control of a three-phase AC induction motor. Typically, the stator voltage is adjusted in proportion to frequency to maintain a constant flux. This provides easier adjustment of speed.
