Split Image

Block Category: Channels

Input Image Format

Input Image Requirements: RGB

Description: The Split Image block splits the R, G, and B channels of an image into individual gray scale channels. You use the Merge Images block to join the channels back to a single RGB image.

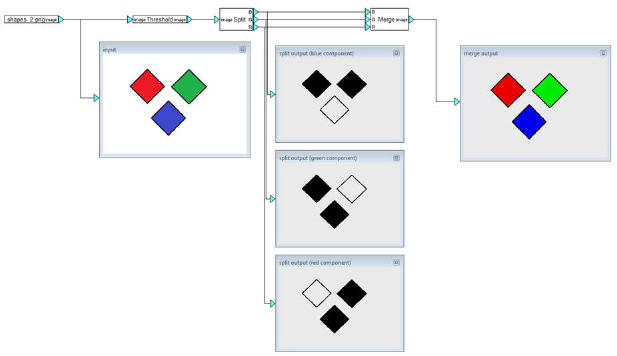

In this example, the R G B components from the input image are displayed in corresponding Display Image blocks. The Merge Images block merges the channels back together.
