Park Transform Stationary Frame

Category: Toolbox > eDrives > eMotors (Legacy) > Other Tools > Transforms

Description: The Park Transform Stationary Frame block performs a Park’s forward transformation for stator voltages in the stationary reference frame (3 X 3).

The Park Transform Stationary Frame block transforms three-phase signals/systems [a b c] to quadrature, direct and homopolar components [q d o] in the stationary reference frame (rotation angle = 0).

This transformation is given by:

Park Transform stationary equation

Example

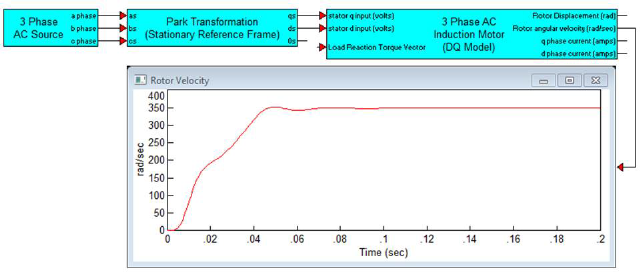

Diagram name: Park Transform Stationary Frame

Location: Examples  > eMotors (Legacy) > Transforms

Park’s transformation is used in this example to transform a three-phase voltage source to DQ frame voltages for use on the DQ frame model.
