Park Transform

Category: Toolbox > eDrives > eMotors (Legacy) > Other Tools > Transforms

Description: The Park Transform block transforms orthogonal signals and systems components [alpha beta] to direct and quadrature components [d q] given a particular rotation angle, θ.

Transformation is given by:

Park Transform equation

Example

Diagram name: Park Transform

Location: Examples  > eMotors (Legacy) > Transforms

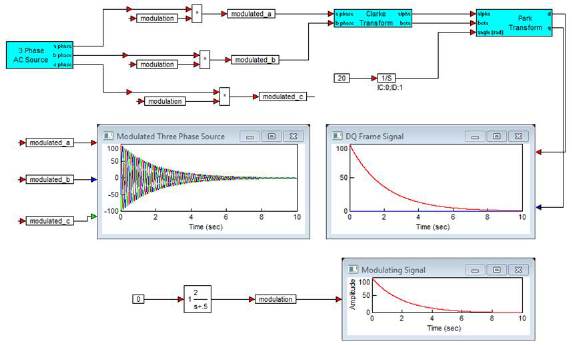

This example shows the transformation of a three-phase source modulated by a converging exponential envelope, first transformed to orthogonal components alpha, beta by Clarke’s transform, then to the rotating DQ frame by Park’s transformation. Here the input angle to Park’s transformation is the angle of rotation according to the three-phase signal’s frequency. The result is the direct component tracing the signal envelope, and the quadrature signal at 0.
