Inverse Clarke Transform

Category: Toolbox > eDrives > eMotors (Legacy) > Other Tools > Transforms

Description: The Inverse Clarke Transform block provides a magnitude invariant transformation of orthogonal reference frame components [alpha beta] to three-phase signals/systems [a b c]. This Clarke transformation is specific to the case where the primary axis of the three-phase coordinate system is aligned with the primary axis of the orthogonal coordinate system.

The transform is given by:

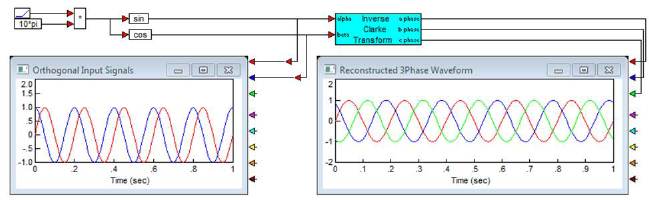

Example

Diagram name: Inverse Clarke Transform

Location: Examples  > eMotors (Legacy) > Transforms
