Filter 2D

Block Category: Filter

Input Image Format

Input Image Requirements: Binary image

Description: The Filter 2D block convolves an image with the specified kernel. It applies a non-separable 2D linear filter to an image.

For 1D signals, you can use the Filter 2D block to filter images with various low-pass filters (LPF) and high-pass filters (HPF).

Kernel Size: Specifies the values used to define the convolution matrix on the output image.

Example

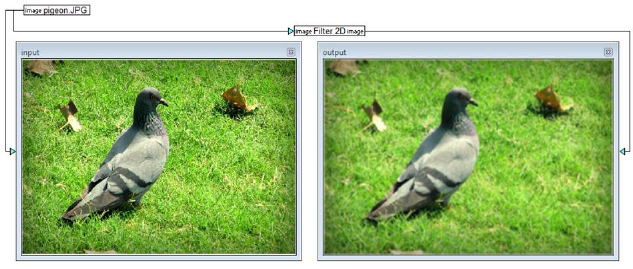

In this example, the input image is convolved with a 5 x 5 filter.
