Analog Comparator DAC - Comparator Subsystem (CMPSS)

Target Category: Delfino, Piccolo

Target Sub-Category: DAC

Description: The Analog Comparator DAC block lets you set up the on-chip comparator that compares an on-chip voltage reference to an external pin.

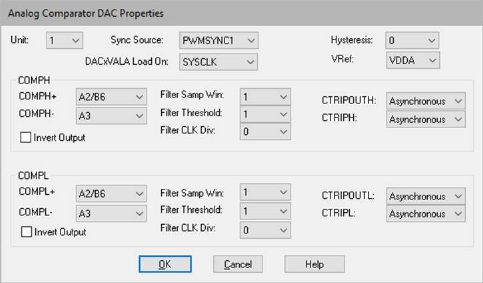

The Analog Comparator DAC block lets you set the value of the DAC on the comparator unit. It takes an input value between 0 and 1 in FX6.16 format. The voltage produced by the Analog Comparator DAC is the input value * VRefDac.

DACxVALA Load On: See Texas Instruments documentation for detailed information on this parameter.

Hysteresis: Indicates the lag introduced to the system.

Sync Source: See Texas Instruments documentation for detailed information on this parameter.

Unit: Indicates the comparator unit.

Vref: See Texas Instruments documentation for detailed information on this parameter.
