Thickness Analysis

View part thickness as a heat map.

Click the Casting tab.
On the Cast Part icon, click Part Analysis.

Then, in the Part Analysis sub-ribbon, click Thickness.

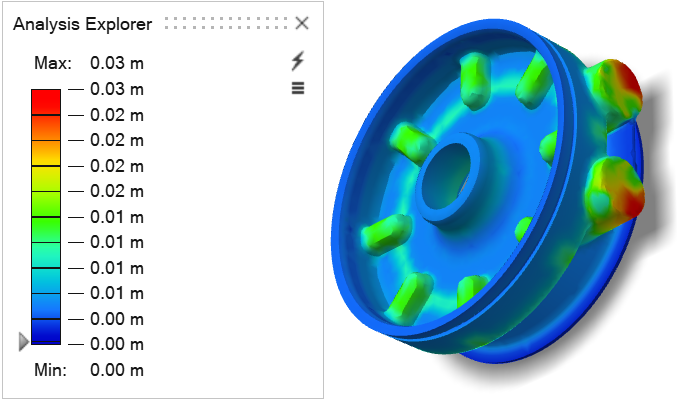

A limited analysis explorer window opens, showing the part's thickness data as a color-coded heat map.

Note: When using a multicavity mold, only one part's thickness will be analyzed.
Optional: Use the slider in the analysis explorer window to change which thicknesses are displayed.
Right-click and mouse through the check mark to exit, or double-right-click.
