Web-Based Interface for Preemption
The Accelerator web interface provides a form-based method of entering preemption rules and methods, and viewing statistics regarding the activation of previously entered preemption rules.
To access the online preemption information, from the Project Home page of the
Accelerator web interface, under Workload, click
Preemption. By default, the Preemption page opens on the
Pools tab.
- Pools tab
- The Pools tab lists summary of all pools of preemption rules. Click the
desired pool names to view the listing of all the preemption rules in
that pool.

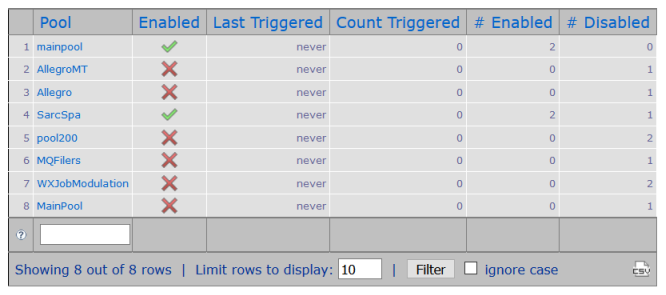

Figure 1.
- Preemption Rules tab
- The Preemption Rules tab lists the preemption rules that are currently
set.

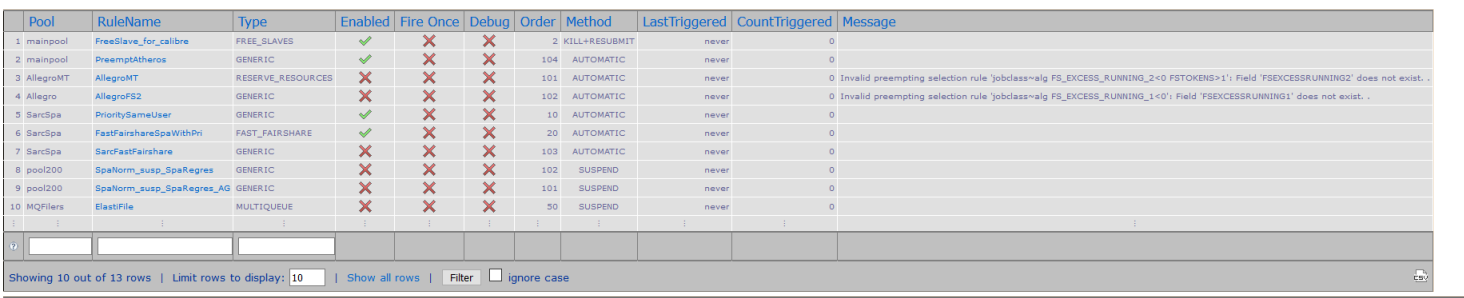

Figure 2.
- Methods for Resources
- The Methods for Resources tab summarizes the preemption rules that are
used for each resource.

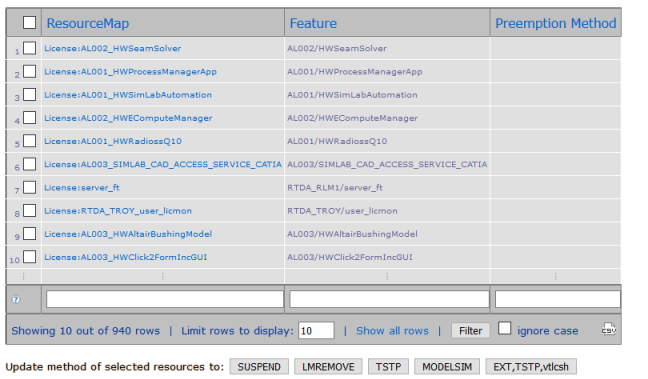

Figure 3.
- Plans for Methods
- The Plans for Methods tab lists the rules of the method plans.

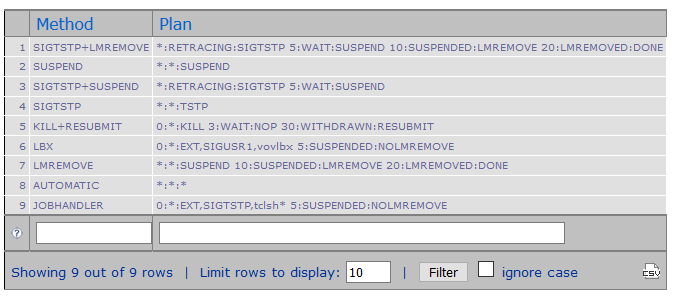

Figure 4.
- Configuration
- The Configuration tab allows exporting preemption rules and creating new
preemption rules.

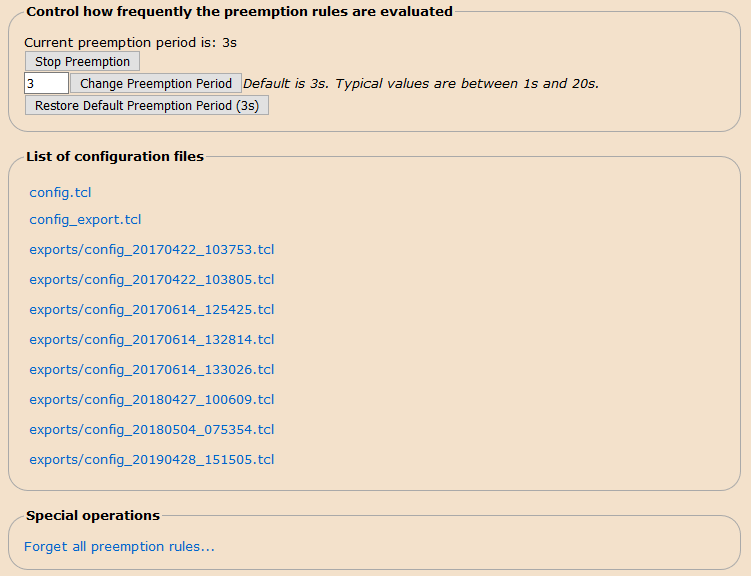

Figure 5.
Create a New Preemption Rule Using the Web UI
-
To enter a new rule, click Add new preemption rule at
the bottom of the Preemption window.
The Preemption Rule form opens.

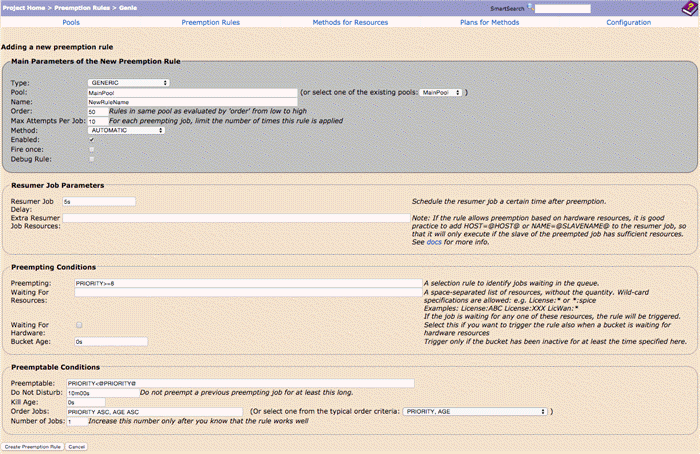

Figure 6.
-
Select the type of preemption rule to implement.
The window shows the appropriate options for the type.
- Fill out the form and click Create Preemption Rule to save the new rule.
