Plot Graphs

The last step in this tutorial is to learn to plot the custom model properties.

To plot a line graph:

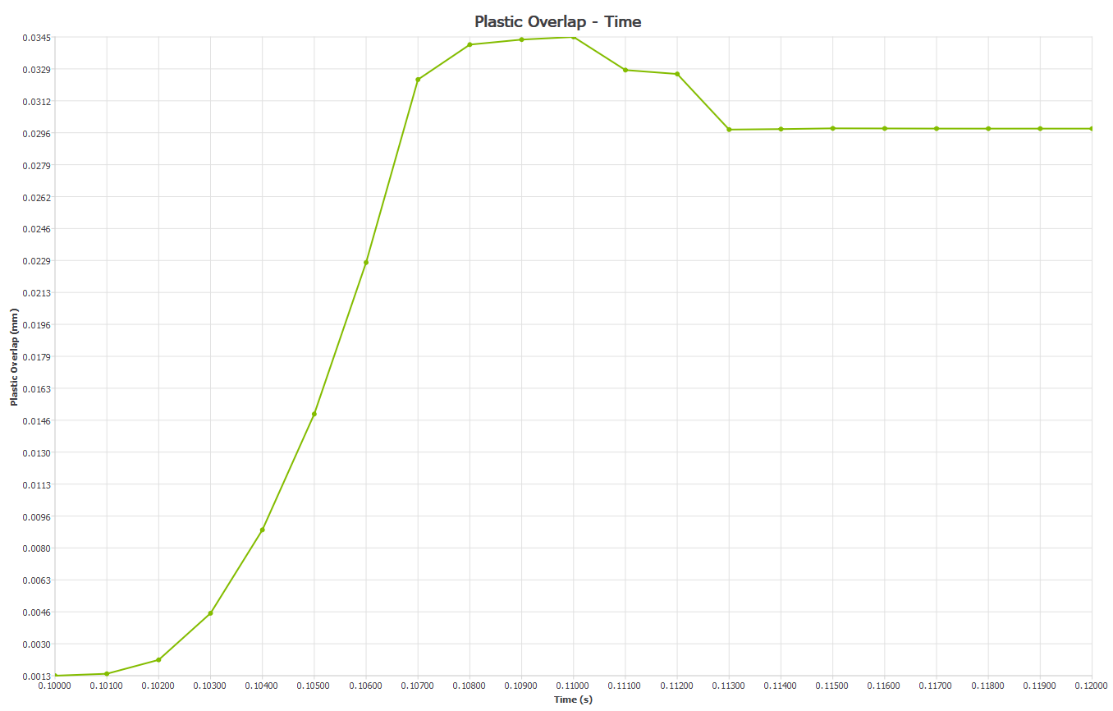

  1. Plot a line graph of the plastic overlap in the EEPA model against time during your simulation.
    1. Click the icon on the toolbar.
      Note: If you cannot see this icon on your toolbar, expand the Standard toolbar.
    2. Select the Line tab and set the X-axis Time Range from 0.10 to 0.12 seconds.
    3. Select Particle from the Group dropdown list.
    4. In the Y-axis tab, set the Primary Attribute to Plastic overlap and Component to Average.
  2. Click Create Graph to plot the graph.
