Define the Environment

The final step in setting up the conveyor model is to set the domain of the simulation.

To define the environment:
  1. Select Environment in the Creator Tree.

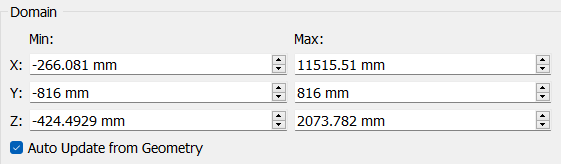

  2. Ensure that the Auto Update from Geometry checkbox is selected.
    Note: This automatically sets the domain of the simulation depending on the Geometries present. Set the Domain Properties as follows:


  3. Set the gravity.
    1. In the Gravity section of the Detailed View, ensure that the gravity is set to -9.81m/s2 in the z-direction.
Next Step - Run the Simulation
