EDEM Analyst - Analyze your results

Learn how to review, examine, and analyze the results of the simulation using EDEM Analyst.

To analyze the simulation results:

Click the icon on the Toolbar.
Use the controls below the simulation window to rewind the simulation to the first Time Step.
Click the icon to play through each Time Step of your simulation.

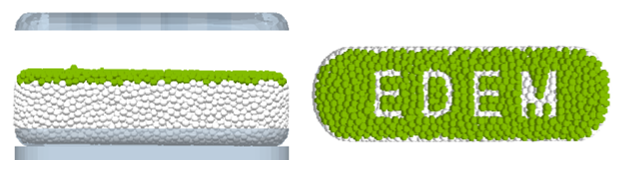

Color the Tablet

The next step is to color the tablet using manual selection.

To color the tablet:

Go to EDEM Analyst and select Setup Selections.
Add a new Manual Selection and set the Time to 0.23 seconds.
Select the Enable Manual Selection checkbox.
Change the Model view to +X and select the top layer of the tablet.
Clear the Manual Selection checkbox.
Go to Selections > Particle Selections > Manual Selection 01 and select the Color by Selection group checkbox.
Select a color from the Color dropdown list and click Apply.

Plot Graphs

The last step in this tutorial is to learn to plot the custom model properties.

To plot a line graph:

Plot a line graph of the plastic overlap in the EEPA model against time during your simulation.
1. Click the icon on the toolbar.

  Note: If you cannot see this icon on your toolbar, expand the Standard toolbar.
2. Select the Line tab and set the X-axis Time Range from 0.10 to 0.12 seconds.
3. Select Particle from the Group dropdown list.
4. In the Y-axis tab, set the Primary Attribute to Plastic overlap and Component to Average.
Click Create Graph to plot the graph.
