Cartesian Surface Graphs
A Cartesian surface graph is a flat colour plot with results plotted against two independent axes.

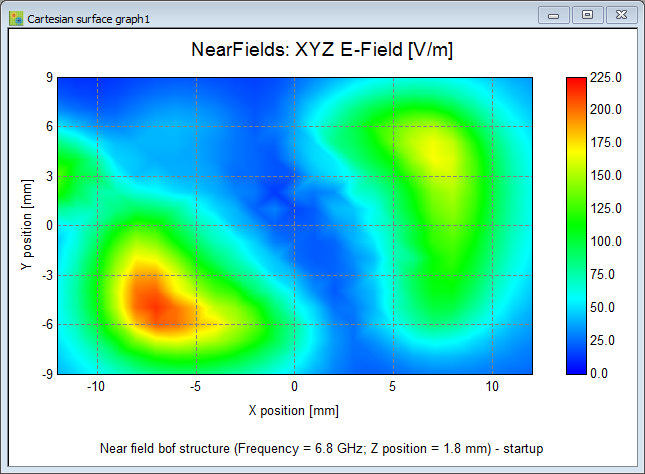

Figure 1. Example of a near field displayed on a Cartesian surface graph.
The surface graph allows you to plot quantities like radar cross section (RCS), gain
or near fields as a function of two as a function of two independent parameters,
such as angles theta and phi or frequency and position.
Note: Only a single plot per
Cartesian surface graph is supported.
