Creating Data Extract from InfluxDB
The InfluxDB connector allows for the retrieval of a JSON data set from the InfluxDB. The database communicates over HTTP(S) where you can define a query on the URL to return the desired data.
Steps:

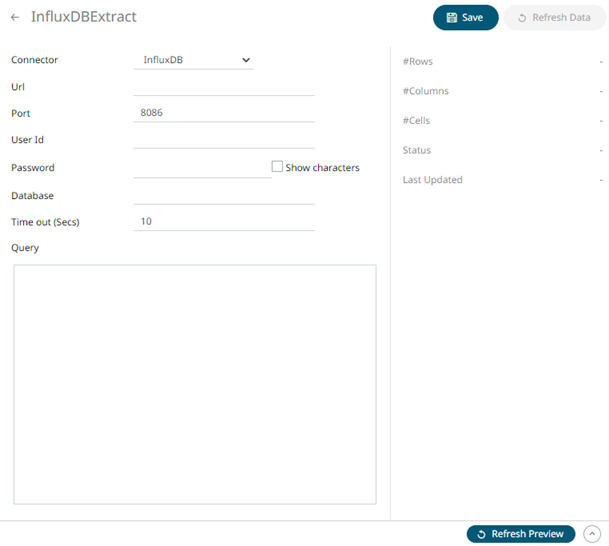

1. On the New Data Extract page, select InfluxDB in the Connector drop-down list.
2. Enter the following information:
|
Property |
Description |
|
URL |
InfluxDB host address. |
|
Port |
InfluxDB host port. Default is 8086. |
|
User Id |
The user Id that will be used to connect to the InfluxDB service. |
|
Password |
The password to connect to the InfluxDB service. Check the Show Characters box to display the entered characters. |
|
Database |
The name of the database that will communicate over the HTTP(S). |
|
Time out (Secs) |
The time out period applied to both the TCP socket and for individual read IO operations. Default is 10. |
3. Enter an SQL-like query language into the Query box.
4. Click
to save and display the details
of the data extract.
5. Click
then
to display the data preview.
