Starting an Application on the Application Page



Users with a Designer role have the ability to open and manage applications.



Steps:

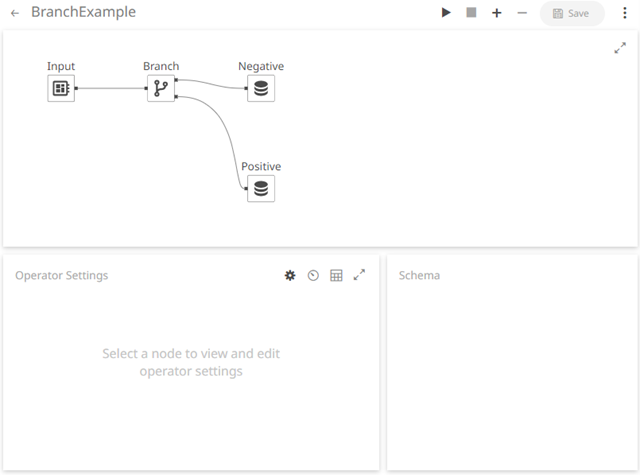

1.    On the Applications tab, click an application link to open and display it on the Application page.

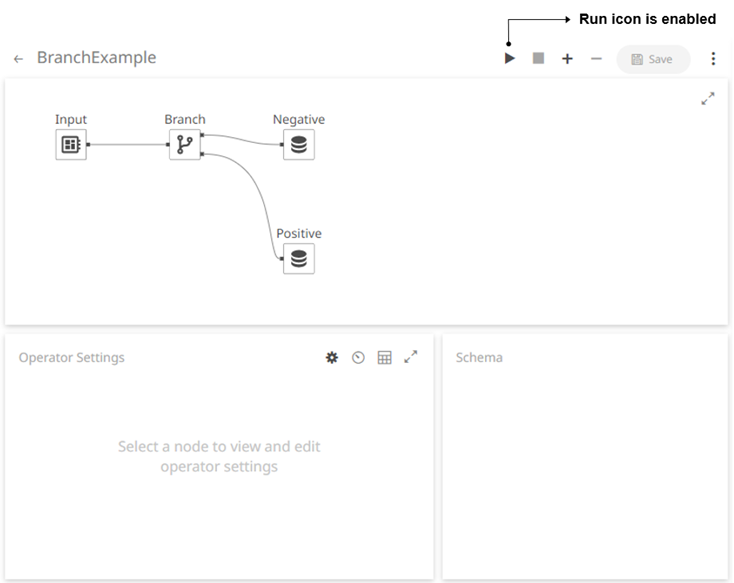

2.    Click  to run the application.

This also enables the  icon and generates the stream topics and the data producer.

3.    You can also perform the following:

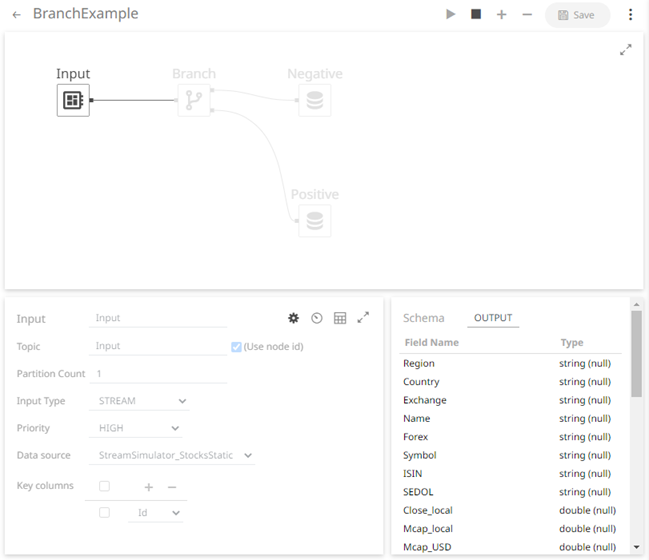

·         click on a node in the Graph panel and  to display its Operator Settings as well as the preview of the data (OUTPUT) in the Schema panel

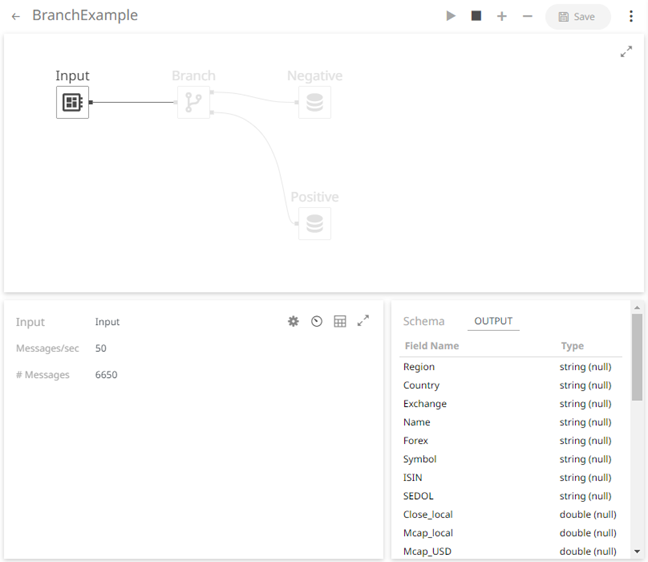

·         click  to display the node’s Metrics as well as the preview of the data (OUTPUT) in the Schema panel

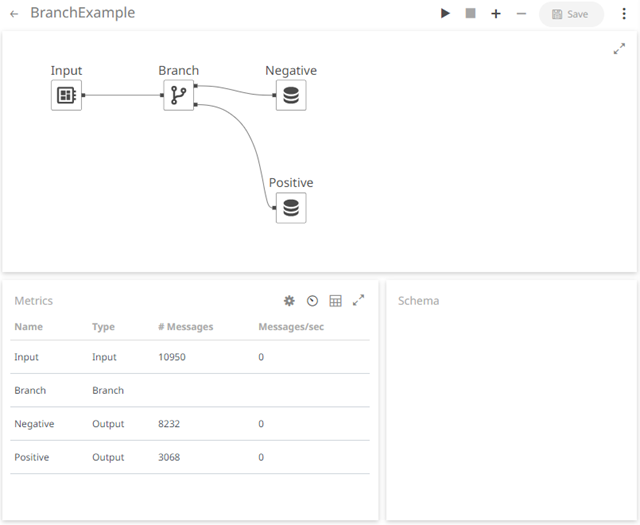

·         select all the nodes and click  to display all of their throughput values (total and current message rates) in the Metrics panel.

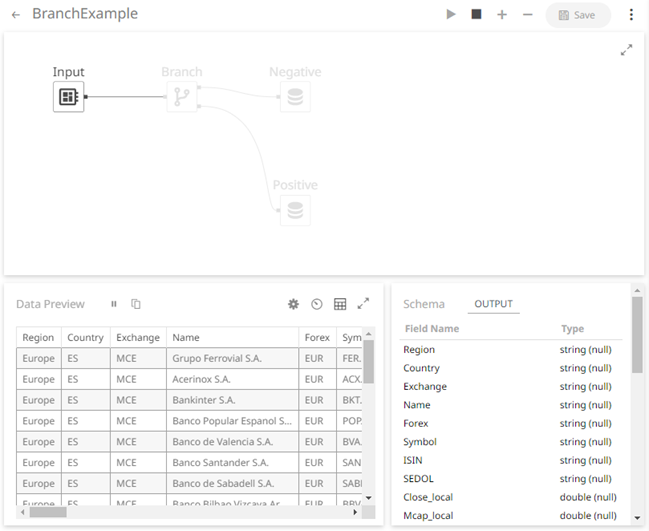

·         select an input or output node and click  to display the data preview.

You can also click:

to copy the data to a clipboard.

to pause the update. To start the update, click  .
